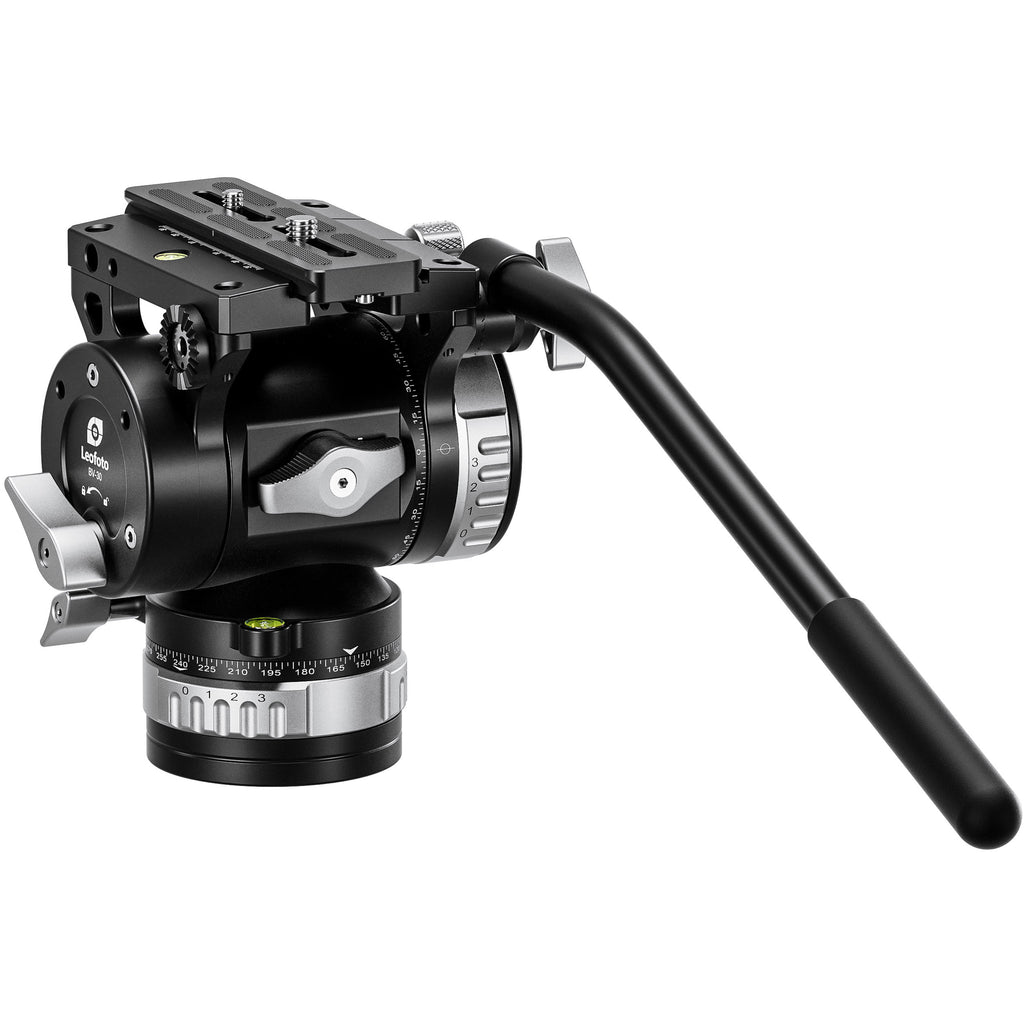

Leofoto BV-30 Pro Video Fluid Head - Arca Standard Clamp

Leofoto BV-30 fluid head is Leofoto's newly developed professional fluid head. Featured excellent functions, top quality and precision, ergnomics, quick adjustment and smooth operation.

Technical Specifications:

Head Base: Flat
Pan Drag Type: 4 damping settings for pan
Tilt Drag Type: 4 damping settings for tilt
Counterbalance System: Stepless dynamic counterbalance damping settings
Balance Load: 0-10kg (0 - 22.05lb)
Max Load: 20kg (44.09lb)
Height: 153mm (6in)
Weight: 2.18kg (4.81lb)
Leveling Bubble: Available
Pan Bar: Available
Pan Bar Attachment: Available on right and left sides
Replaceable Pan Bar Rosette: Yes
Plate Type: Arca Swiss standard dovetail plate
Plate Travel: 120mm (4.72in)
Plate Attachment: 3/8" and 1/4" camera screws + anti-rotation pin
Pan Range: 360°
Tilt Range: -90° +90°
Temperature Range: -20°C +40°C

STEPLESS DYNAMIC COUNTERBALANCE DAMPING SETTINGS
Featured a precise and continuous rebound balance system. It is a perfect option for most video cameras.

4 DAMPING SETTINGS FOR TILT
Precise and smooth tilting system and ±90° damping adjustment.

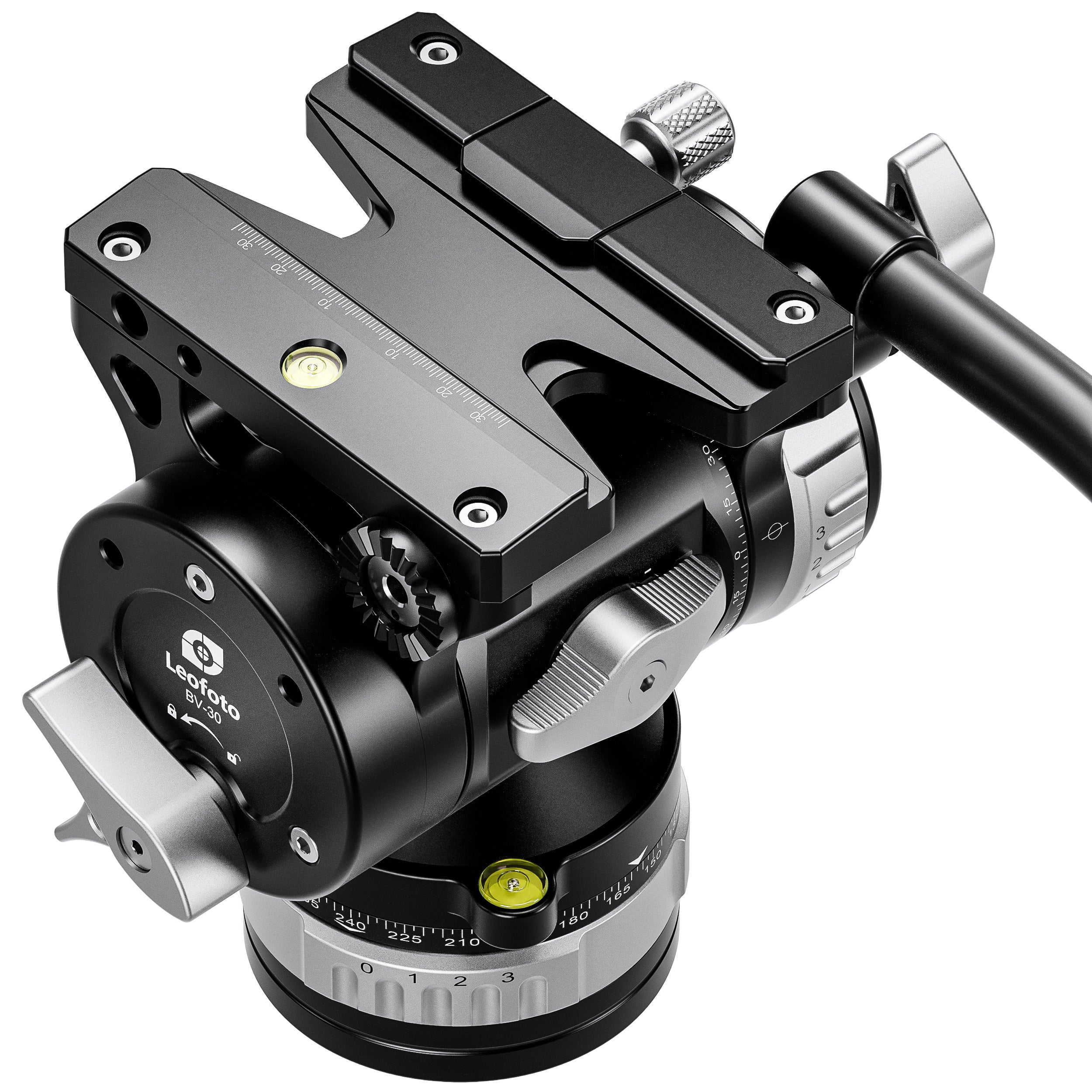

Press & Release clamp for fast attachment/detachment of plate
The clamp features an automatic lock system which protects the camera from suddenly falling down. To remove the quick release plate, just push the silver security lock.

3/8 brass mounting socket & hidden tools

Handle left-right convertible, can be set for left or right handed use
To convert the handle, user needs to invert the toothed joint to the handle and then tighten the screw
