Description

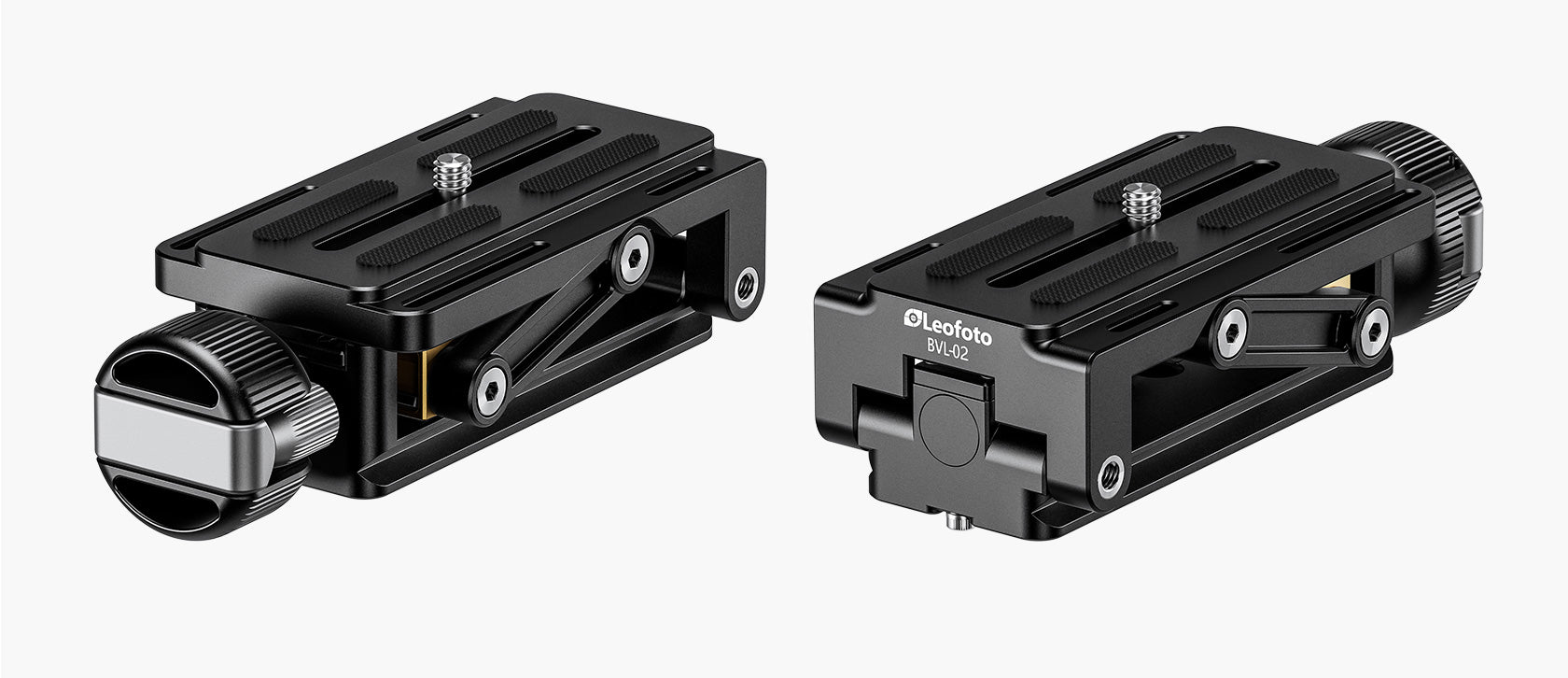

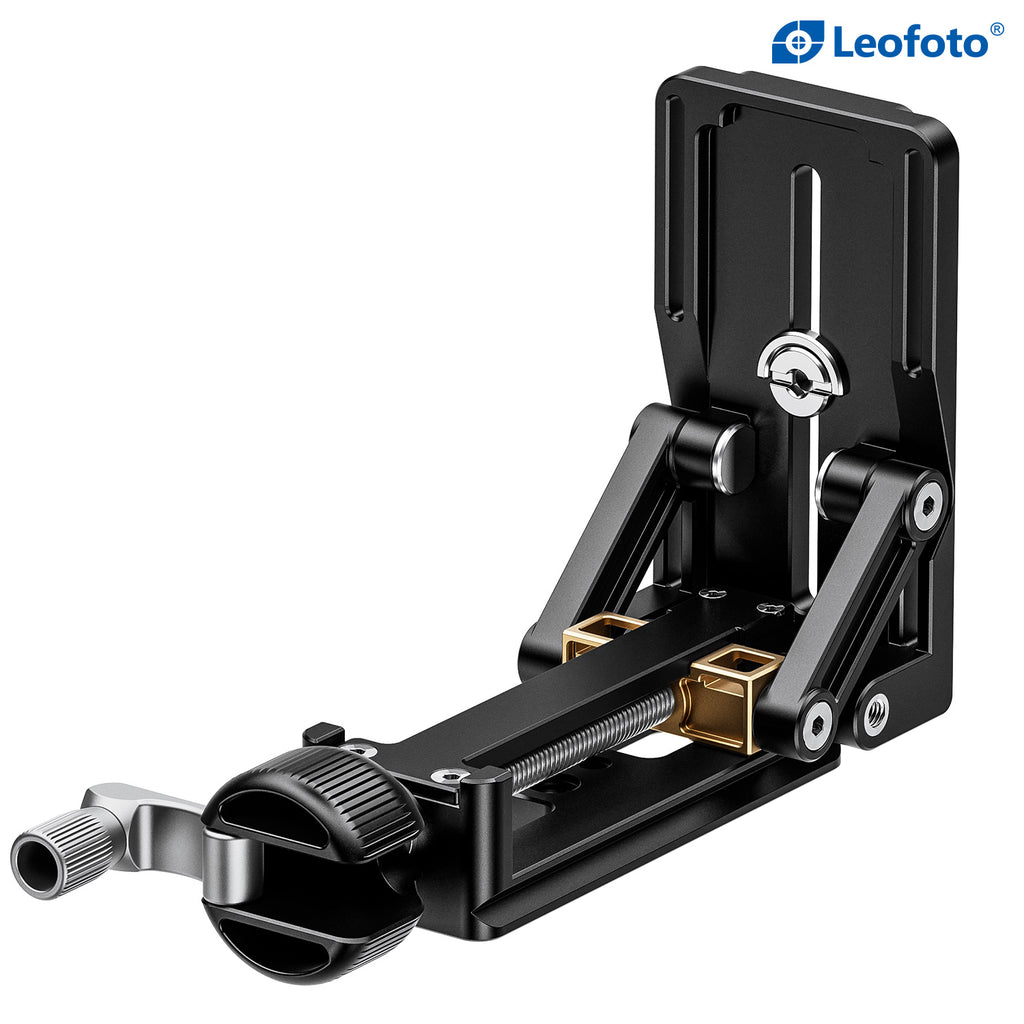

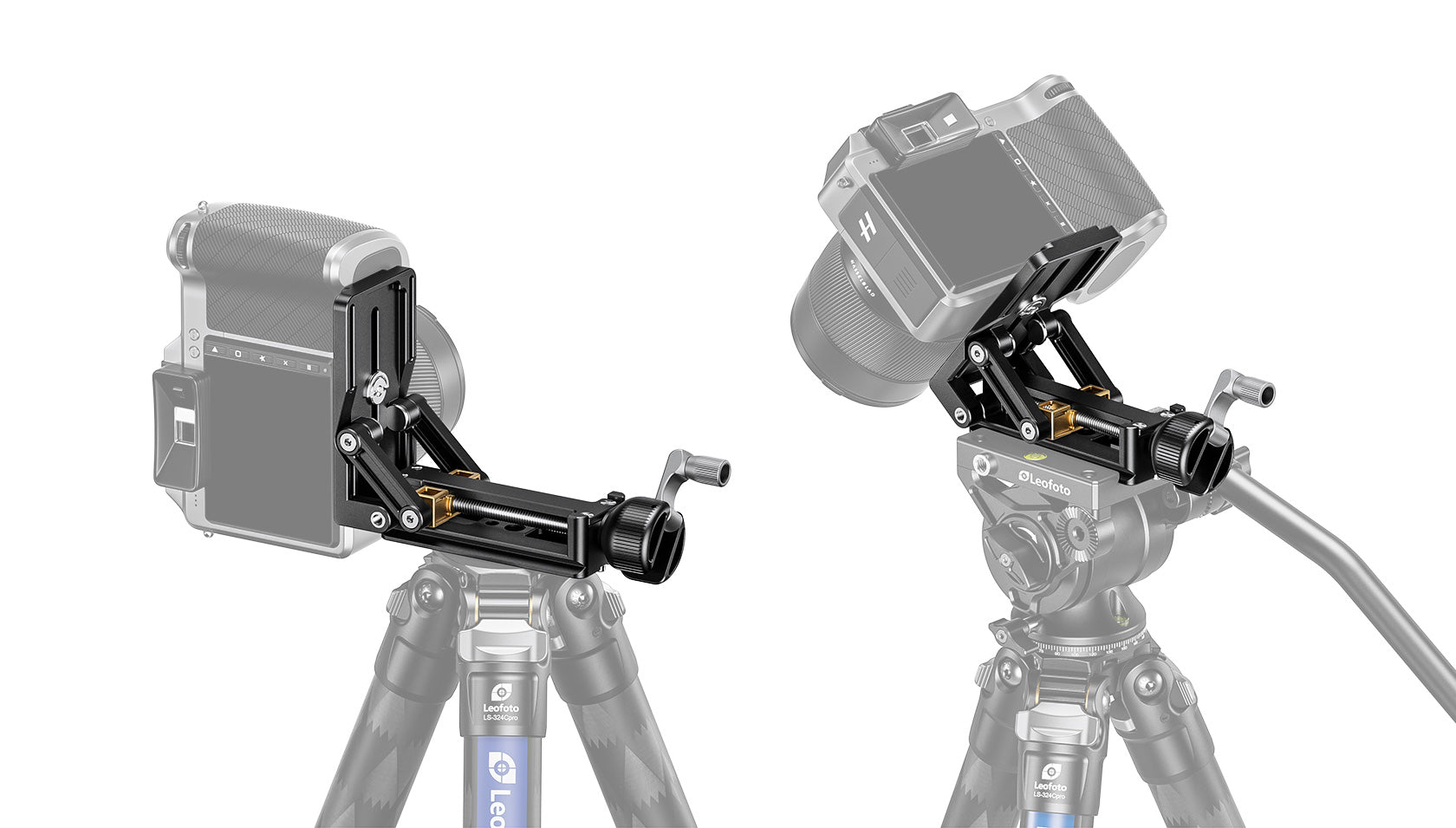

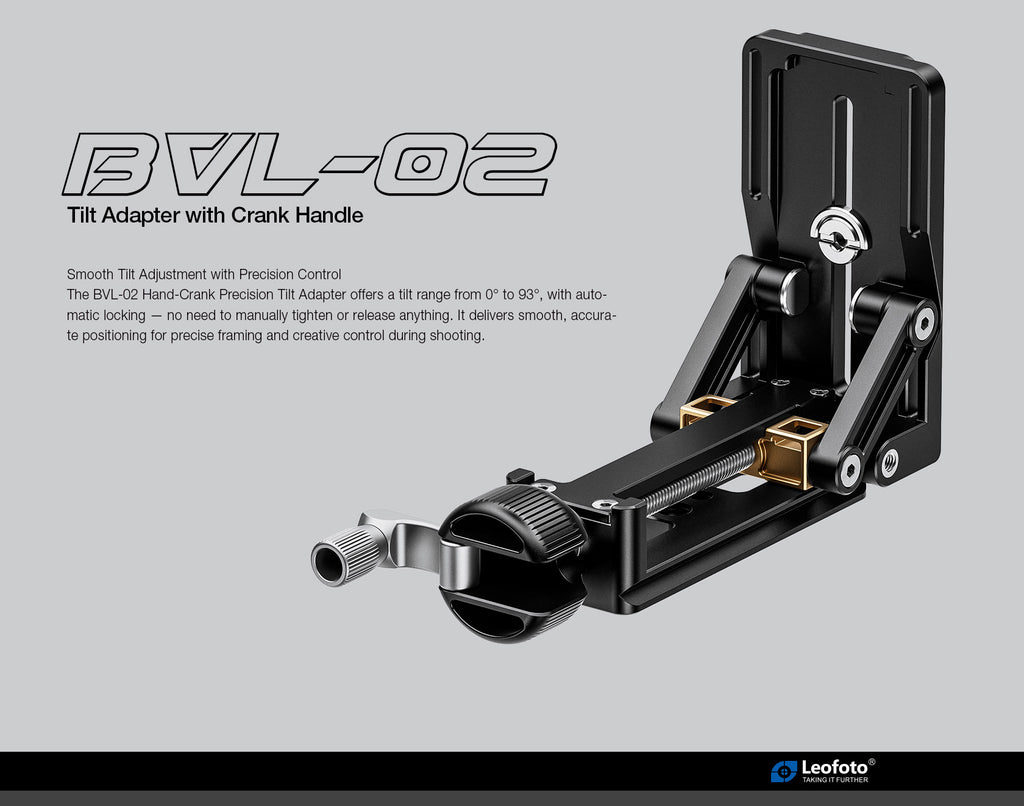

The Leofoto BVL-02 Tilt Adapter is designed to provide flawless precision and dynamic control in both photography and videography. With a tilt range from 0° to 93°, the adapter features automatic locking for smooth and accurate positioning, ensuring precise framing and creative control during shoots.
Key Features:
-
Precision Tilt Adjustment: Smooth tilt from 0° to 93° with automatic locking. No need for manual tightening or releasing, making it easier to adjust the angle for perfect composition.
-

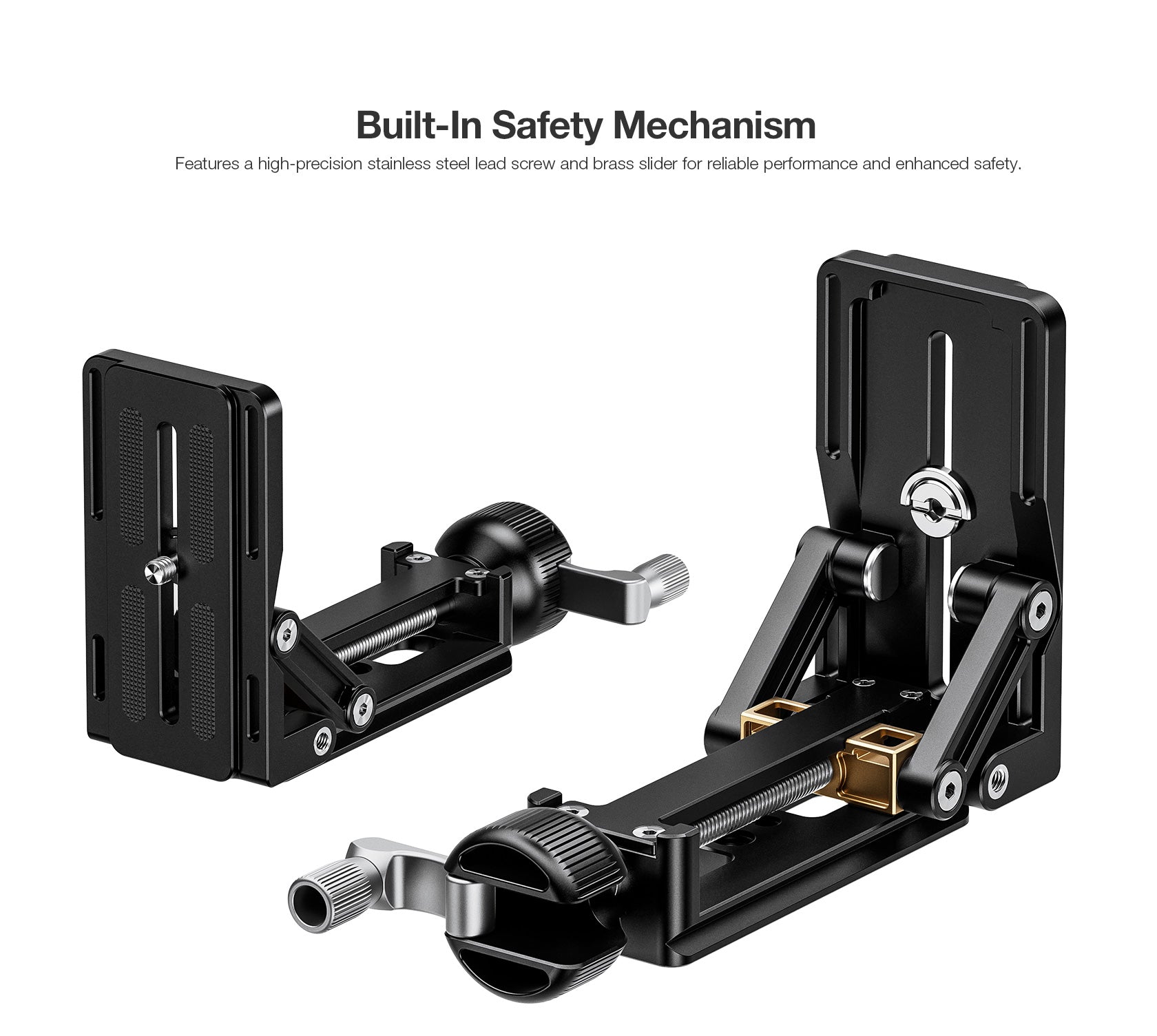

Built-In Safety Mechanism: Equipped with a high-precision stainless steel lead screw and brass slider for reliable performance and enhanced safety.
-

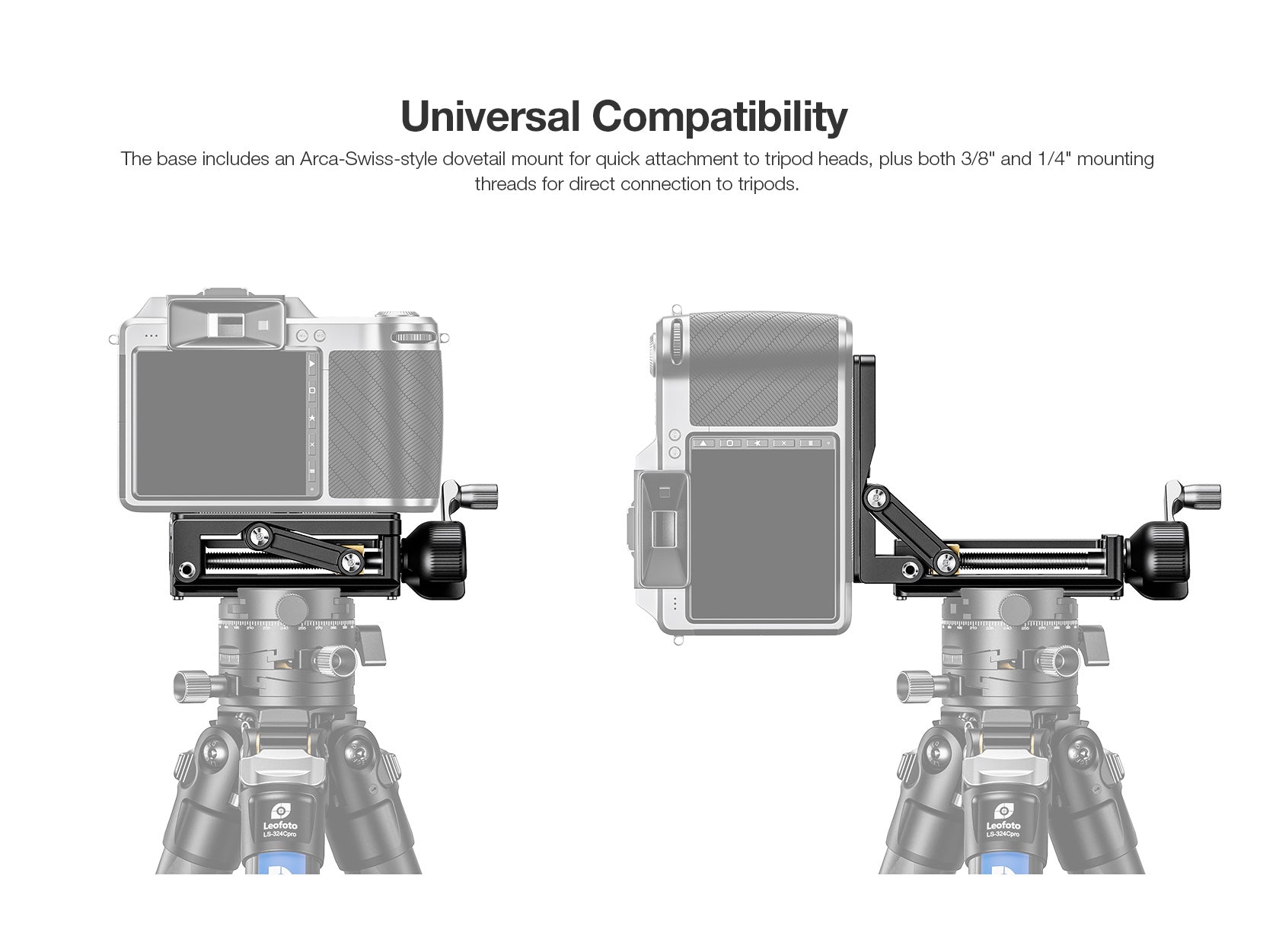

Universal Compatibility: The Arca-Swiss-style dovetail mount allows for quick attachment to tripod heads, while the 3/8" and 1/4" mounting threads offer direct connection to tripods.
-

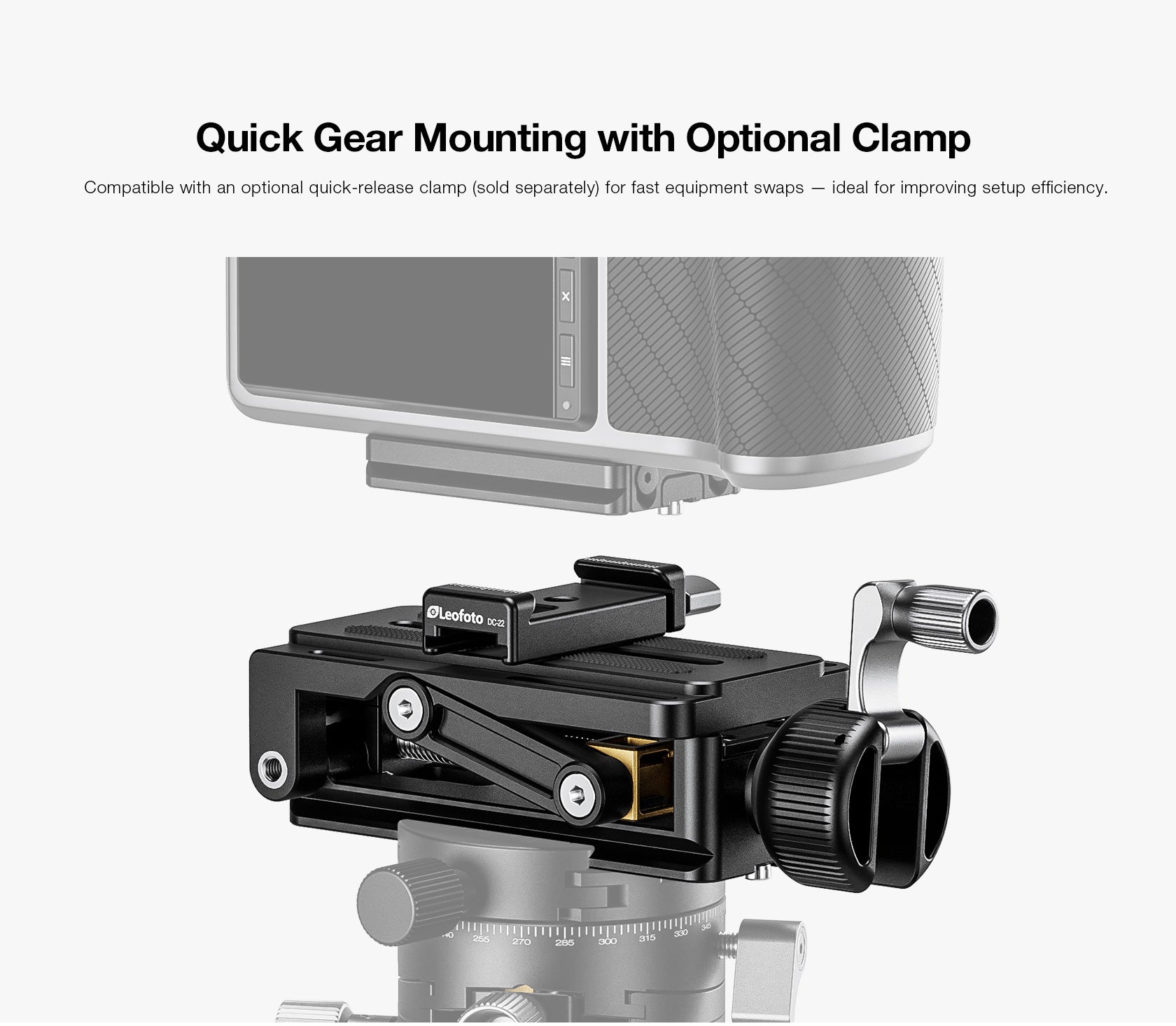

Quick Gear Mounting: Compatible with an optional quick-release clamp (sold separately), allowing for fast gear swaps and improved workflow efficiency.
-

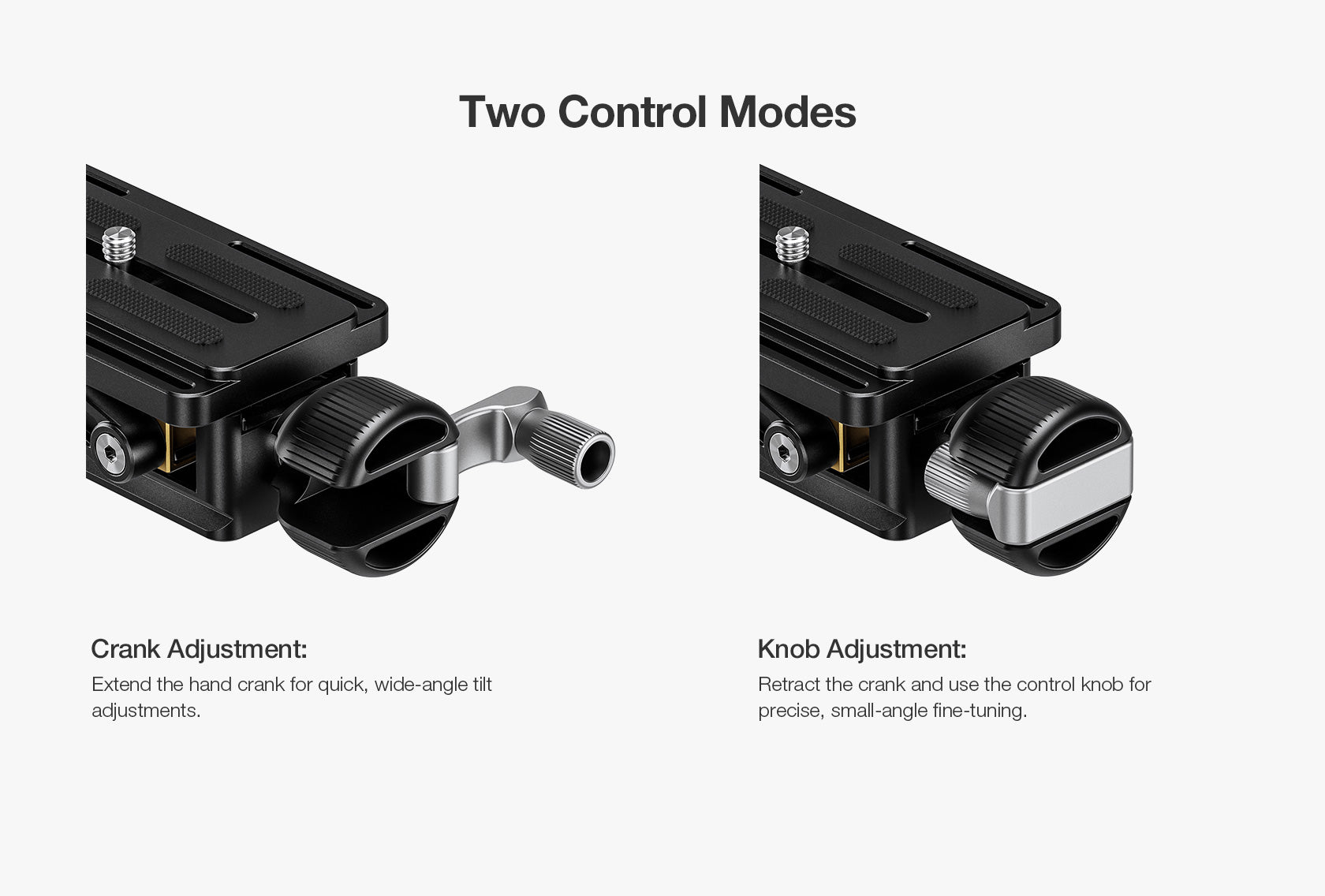

Two Control Modes:
-
Crank Adjustment: The extended hand crank enables quick, wide-angle tilt adjustments.
-
Knob Adjustment: Retract the crank and use the control knob for fine-tuning small-angle adjustments.
-
Specifications:
-

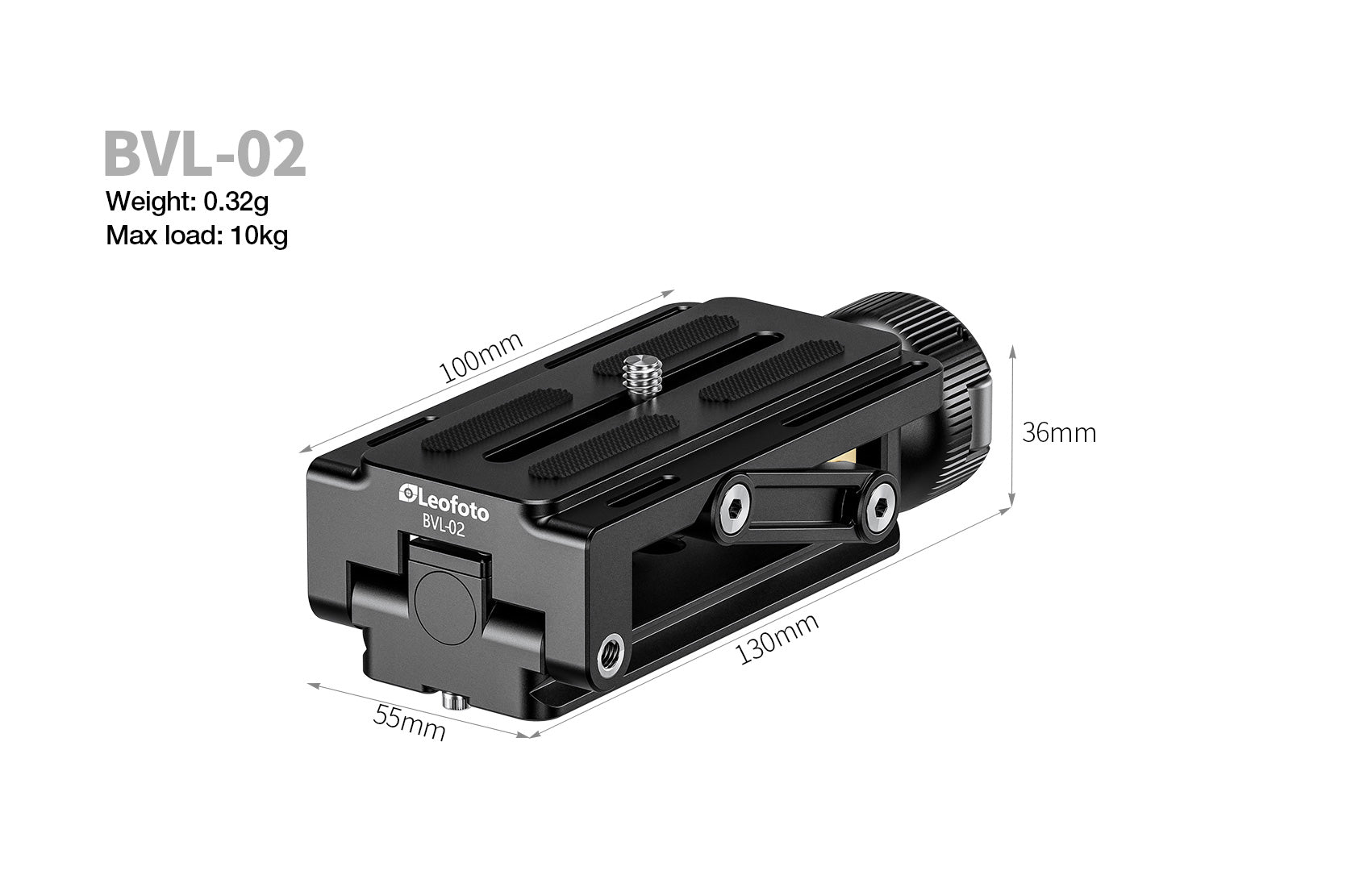

Dimensions:
-
Length: 130mm (5.12 inches)
-
Width: 100mm (3.94 inches)
-
Height: 36mm (1.42 inches)
-
Mounting Base: 55mm x 100mm (2.17 x 3.94 inches)
-
-
Weight: 0.32kg (0.71 lbs)
-
Max Load: 10kg (22 lbs)
-
Compatibility:
-
Arca-Swiss-style dovetail mount
-
3/8" and 1/4" screw mounts for tripod attachment
-
