Description

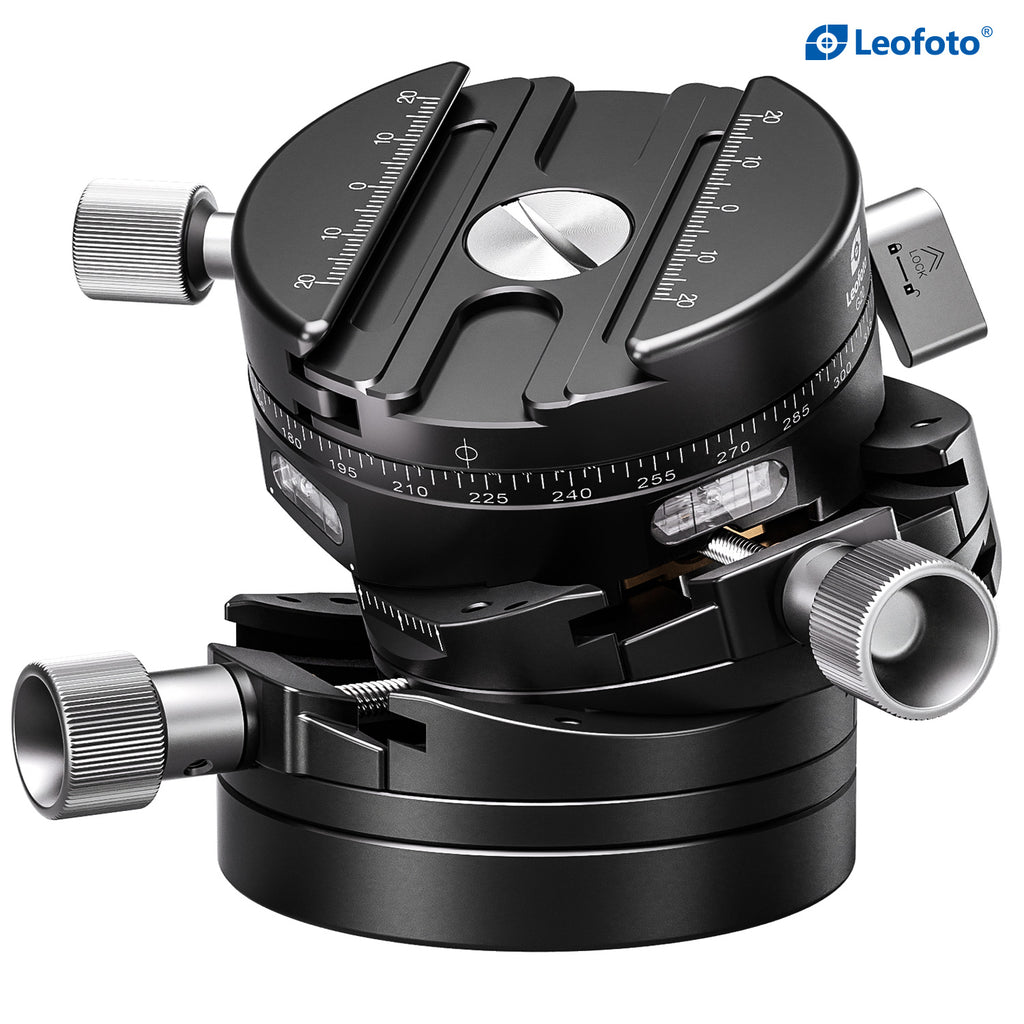

The Leofoto G20 is a mid-sized 3D geared head designed for photographers who require precise, repeatable control over composition on all three axes. Ideal for architecture, macro, studio, and telephoto landscape photography, the G20 combines fine geared movements with a dual panning system for maximum accuracy.
Distinguishing it from the smaller G2 model, the G20 features panning rotation at both the top and the base, allowing for precise panoramic alignment without disturbing camera level. Independent controls for horizontal, tilt, and vertical adjustments enable exact framing with smooth, backlash-free movement.

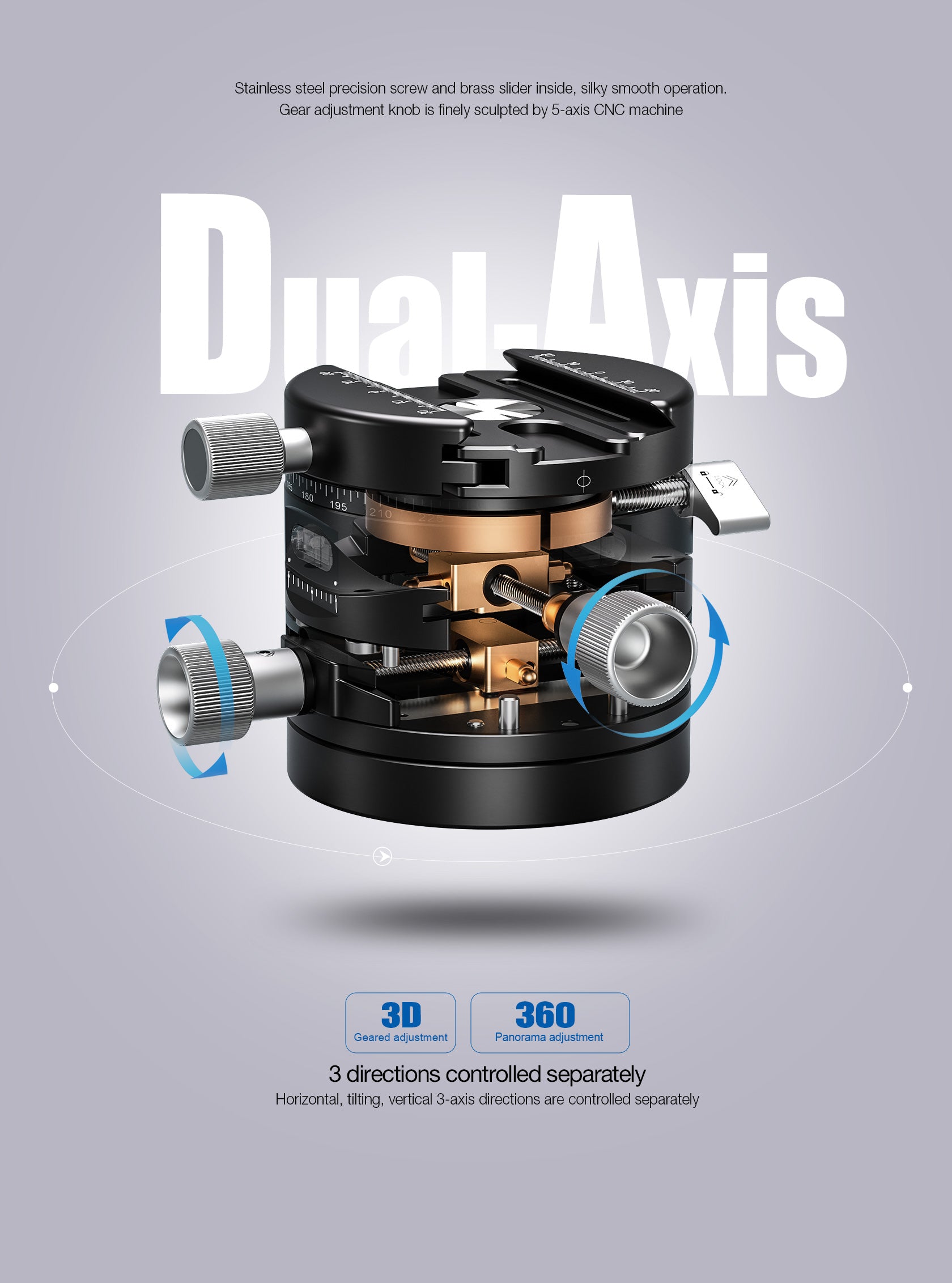

Constructed from 6061-T6 aluminum, and using stainless-steel precision screws with brass sliders, the G20 delivers durable performance and ultra-fine micro-adjustments. Two integrated spirit levels on the sides of the head provide fast and accurate leveling in any shooting orientation.
With a ±15° adjustment range and a 20 kg / 44 lb load capacity, the G20 offers enhanced stability and control for heavier camera and lens combinations while remaining compact and tripod-friendly.
Key Features
-

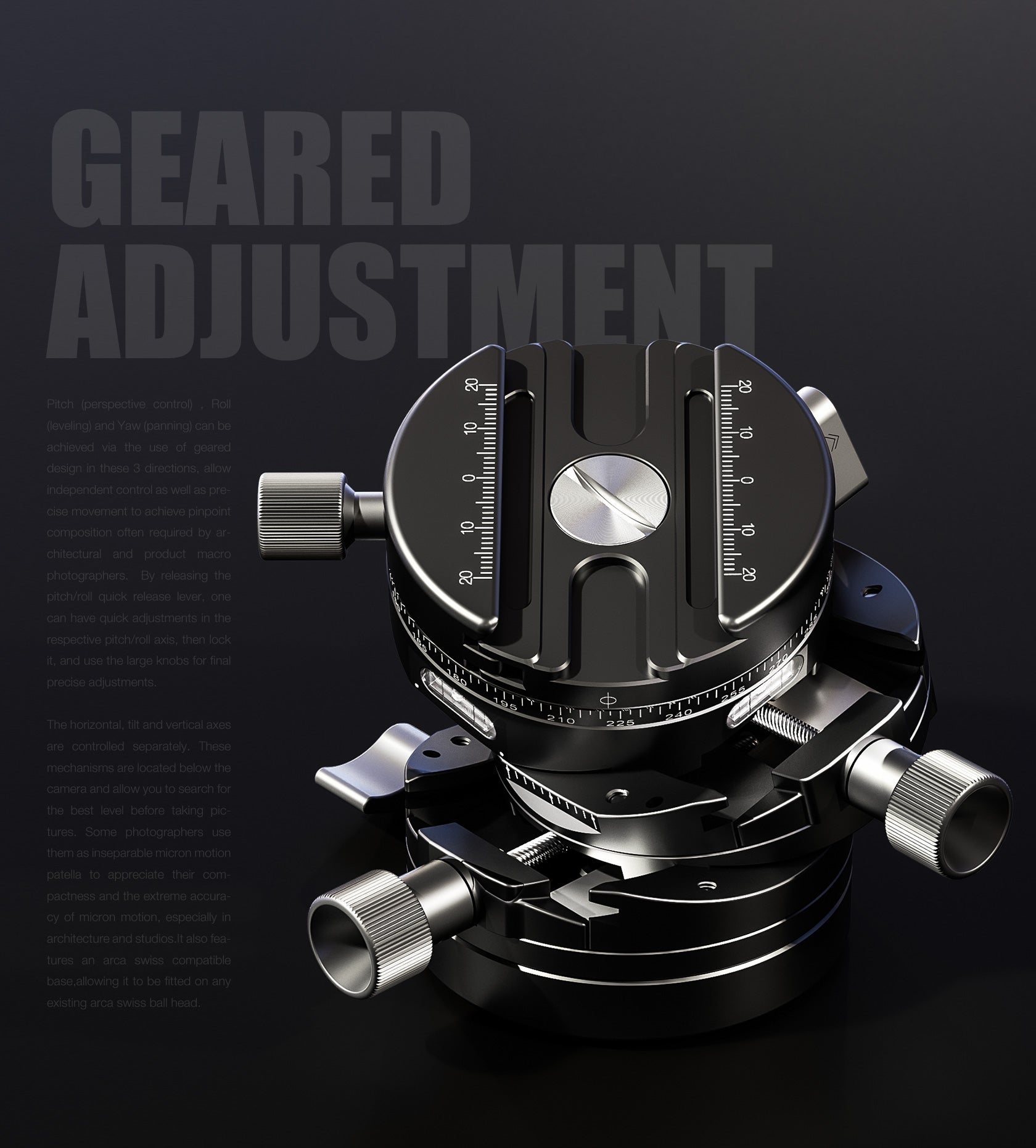

3-axis geared control for precision composition
-
Dual panning system (top and base) for panoramic shooting
-
Arca-Swiss compatible clamp with QP-70N quick-release plate
-
Dual integrated spirit levels for accurate leveling
-

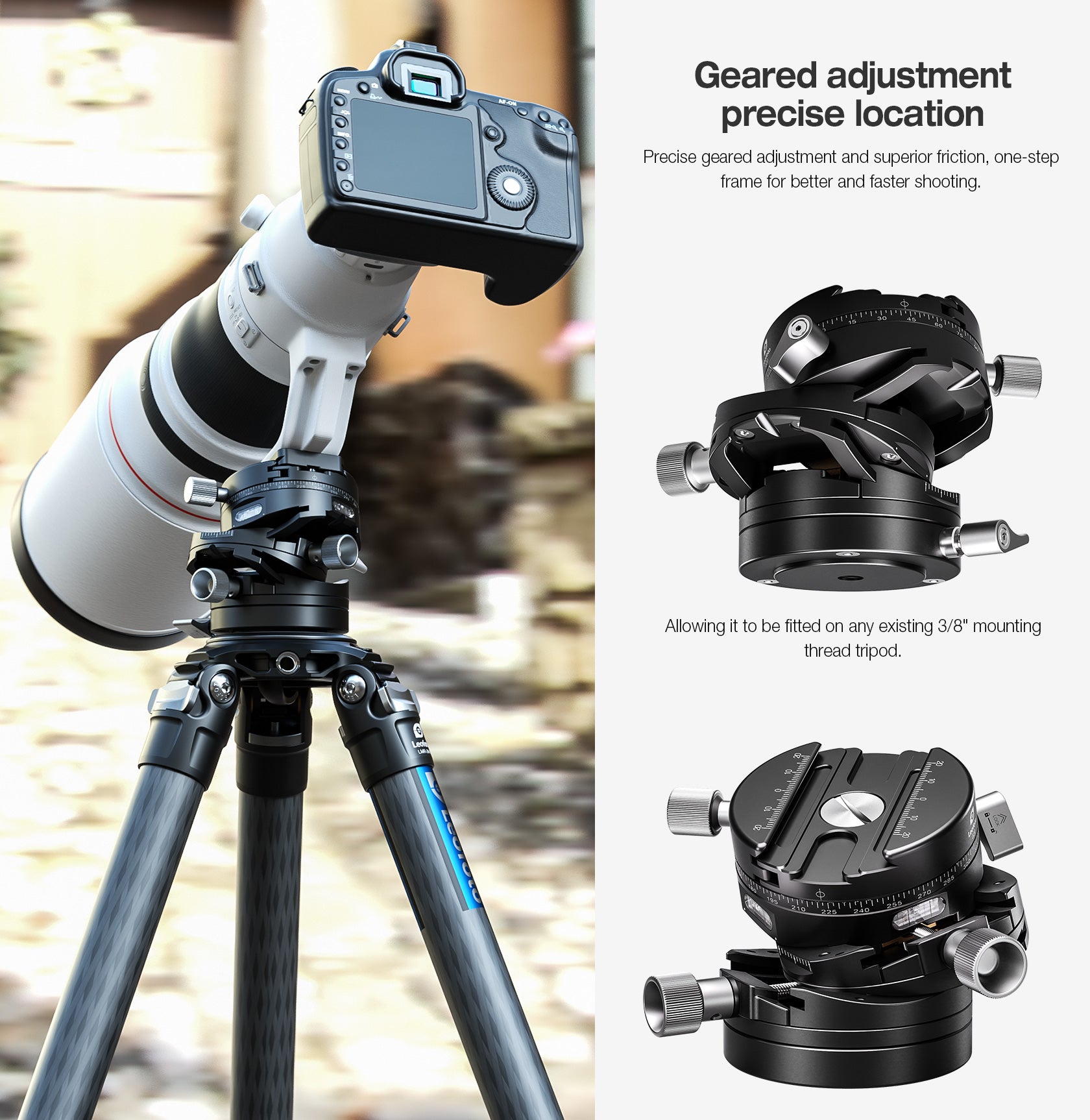

Compatible with any tripod using a 3/8"-16 mounting thread
Specifications
-
Height: 81 mm / 3.19 in
-
Base Diameter: 75 mm / 2.95 in
-
Mounting Hole: UNC 3/8"-16 (11 mm / 0.43 in depth)
-
Max Load: 20 kg / 44 lb
-
Weight: 680 g / 1.50 lb
-
Adjustment Range: ±15°
-
Axis Control: Horizontal, tilt, and vertical axes controlled independently
