Description
New Release

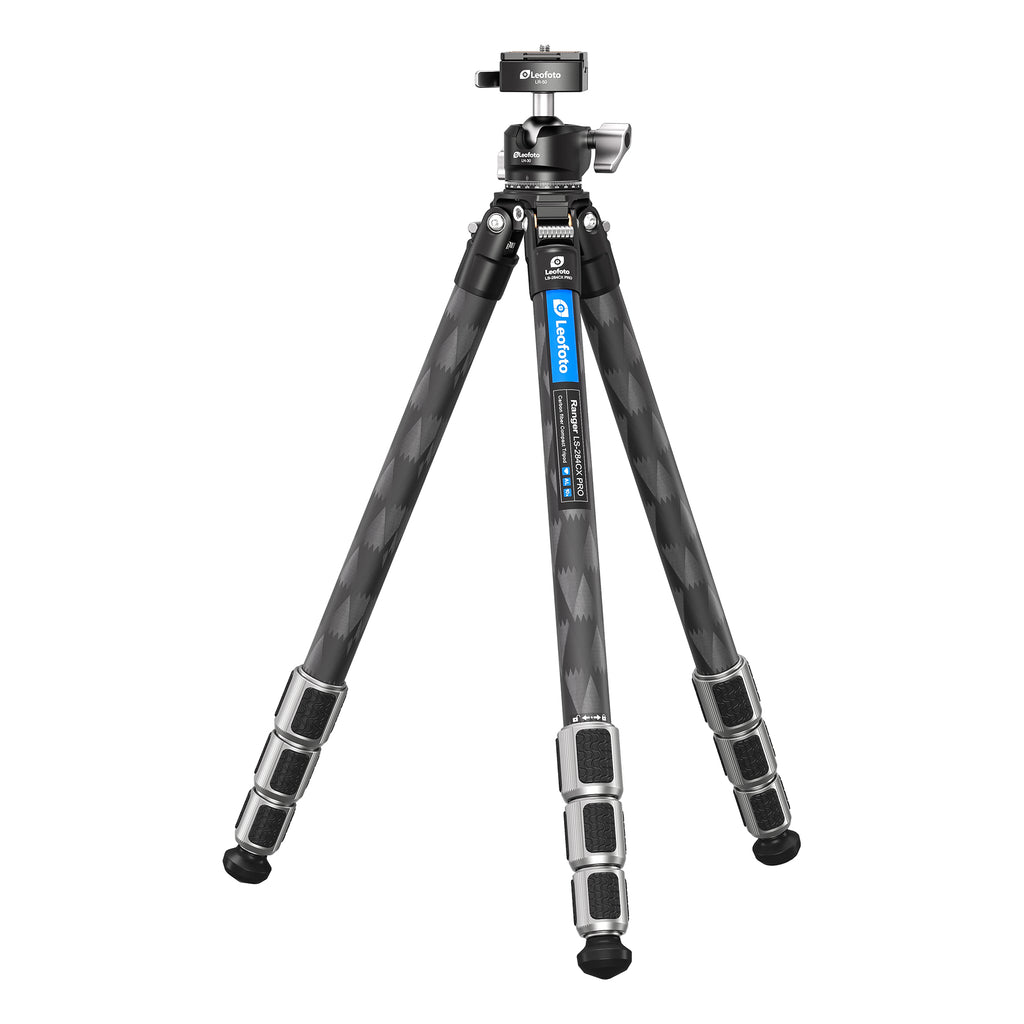

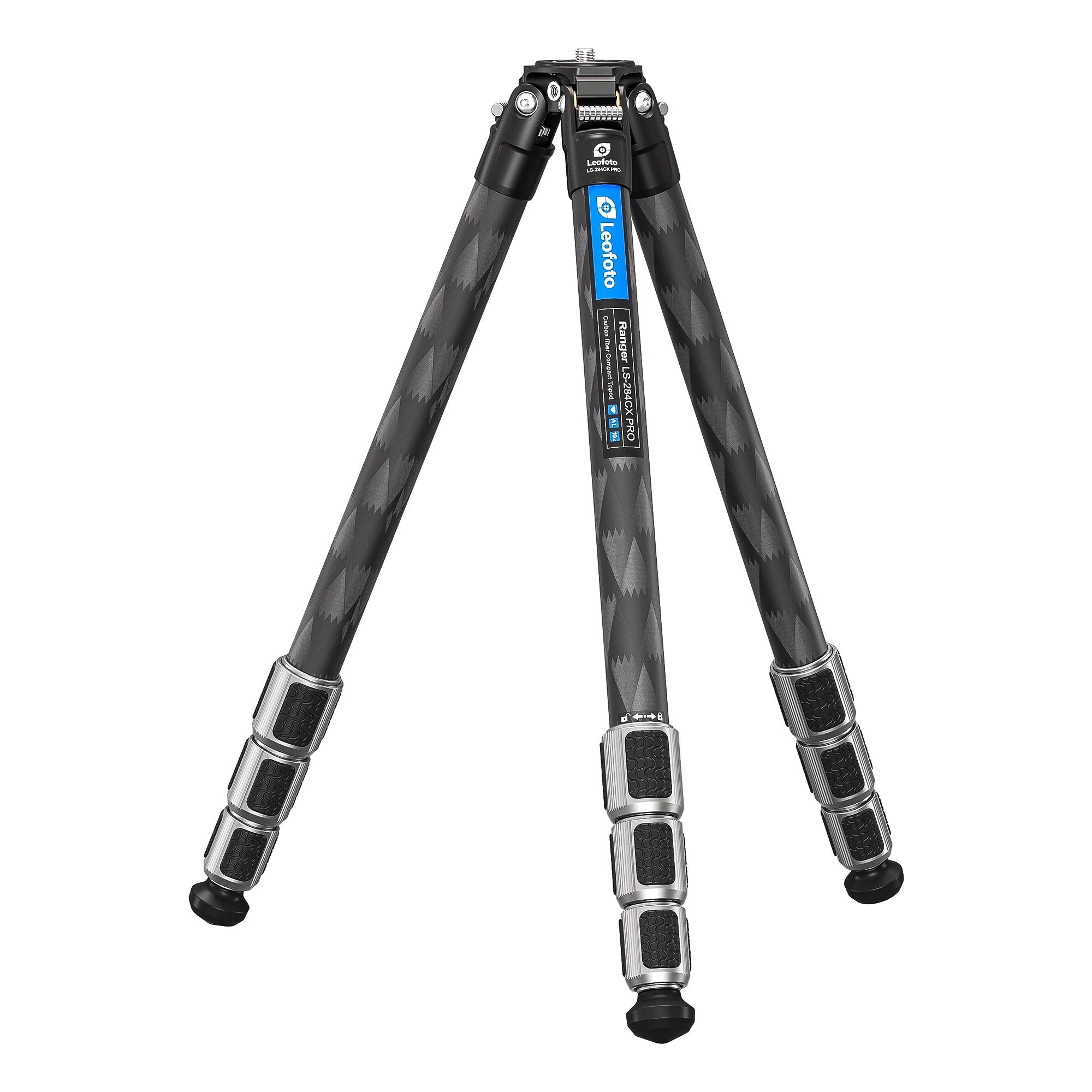

The Leofoto LS-284CXPRO Ranger Series Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. The Pro model features higher-density carbon fiber leg tubes for greater strength and rigidity. Another addition is the water-resistant twist leg locks, which help keep water and debris to a minimum. The angle stops have been improved to be more ergonomic. This new angle stop design allows for one-handed operation for added convenience.
Key Features:
- Latest Carbon Fiber Technology
- Independent Leg Spread

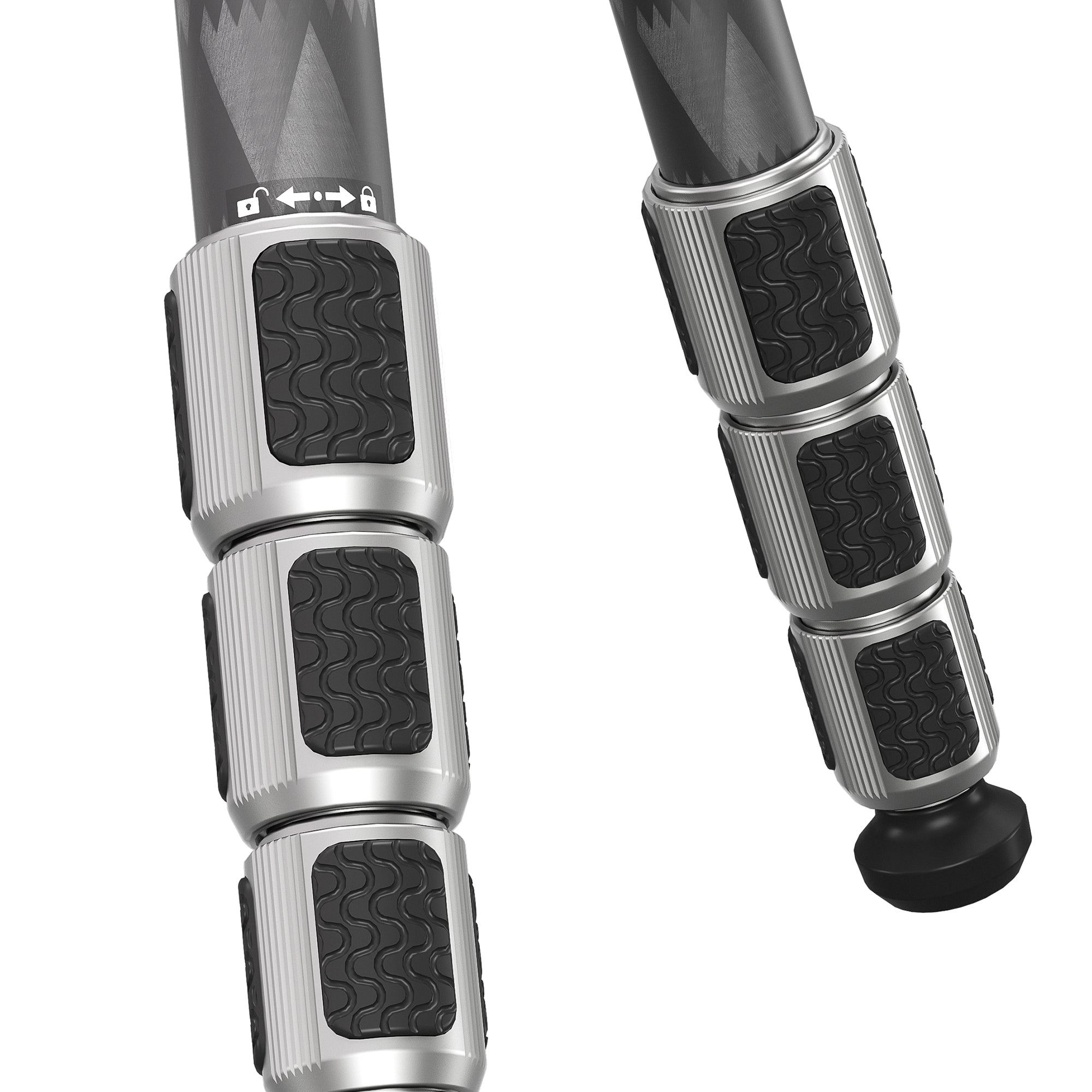

- Water-Resistant Twist Leg Locks

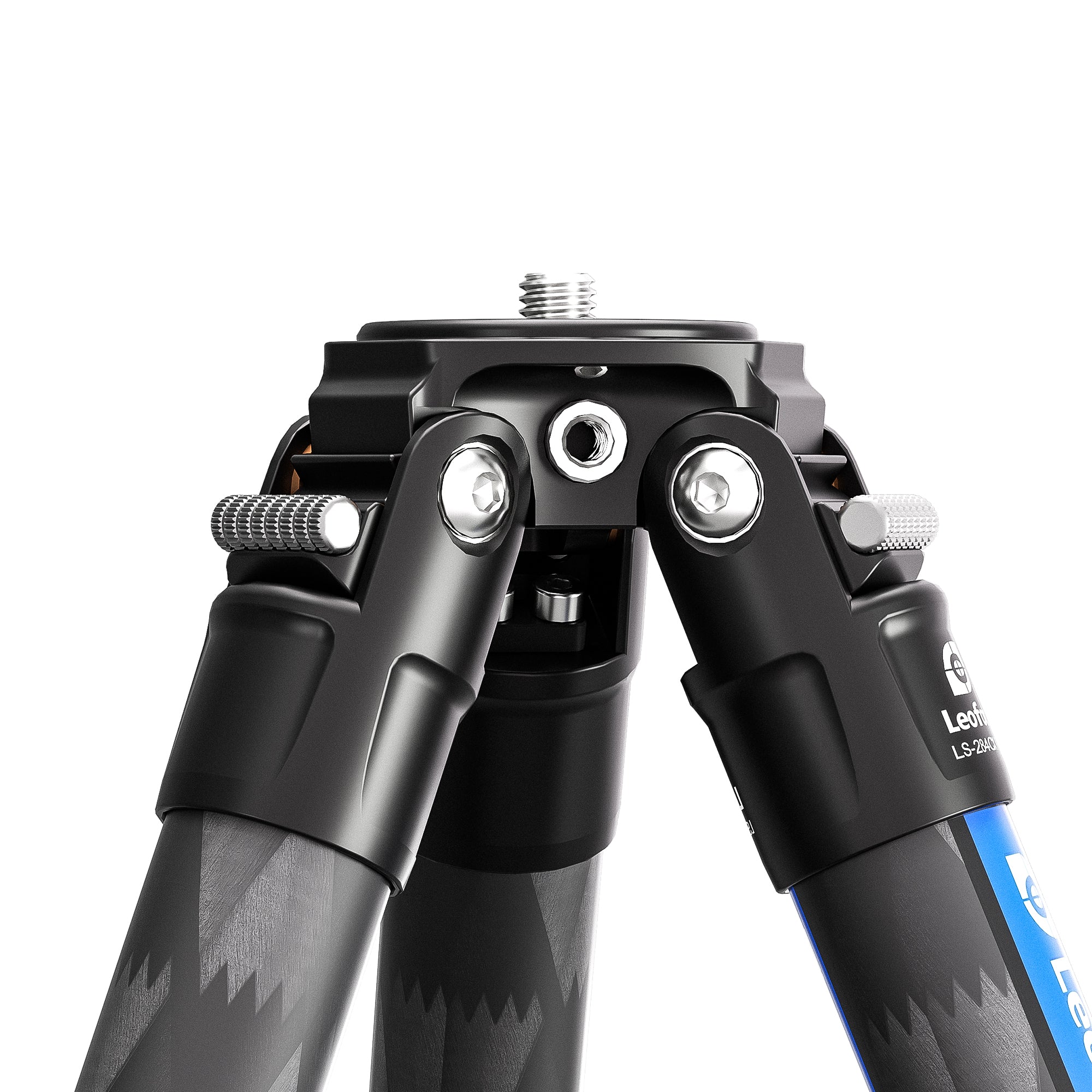

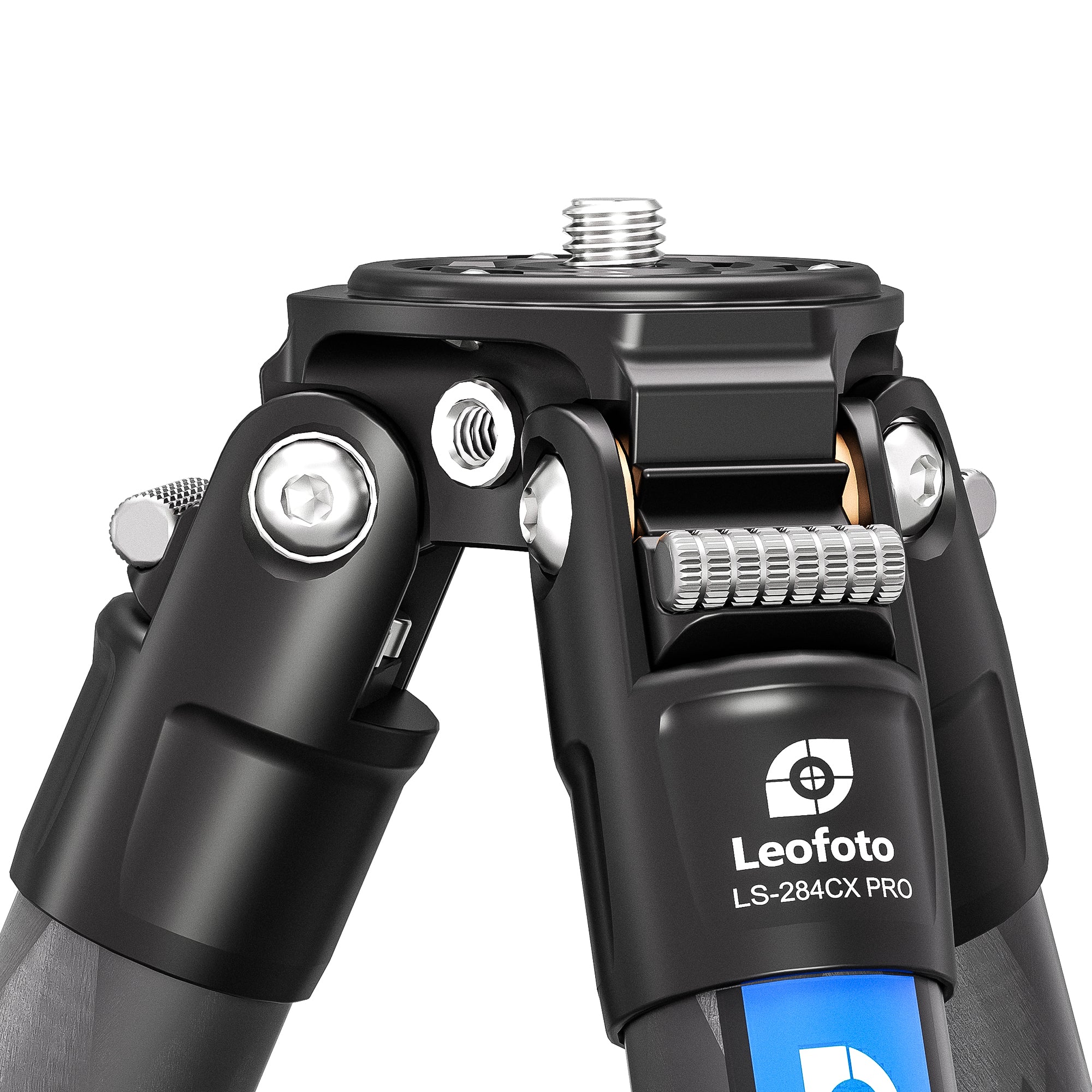

- Improved Ergonomic Angle Stops
- Three Angle Stops: 23°, 55°, 85°
- 1/4"-20 Threaded Accessory Socket
- Rubber Feet (3/8") and Interchangeable Spikes
- Carrying Case
Leofoto tripods feature lightweight carbon fiber tubes to reduce weight while maintaining a high load capacity. The T6-6061 grade aluminum hardware is CNC machined and hard-anodized, creating a durable and scratch-resistant setup. The standard twist leg lock system can be quickly deployed with a quarter turn. With the tripod's variable leg angle positions, the tripod can be fully spread out, allowing support to drop to a very low minimum height.

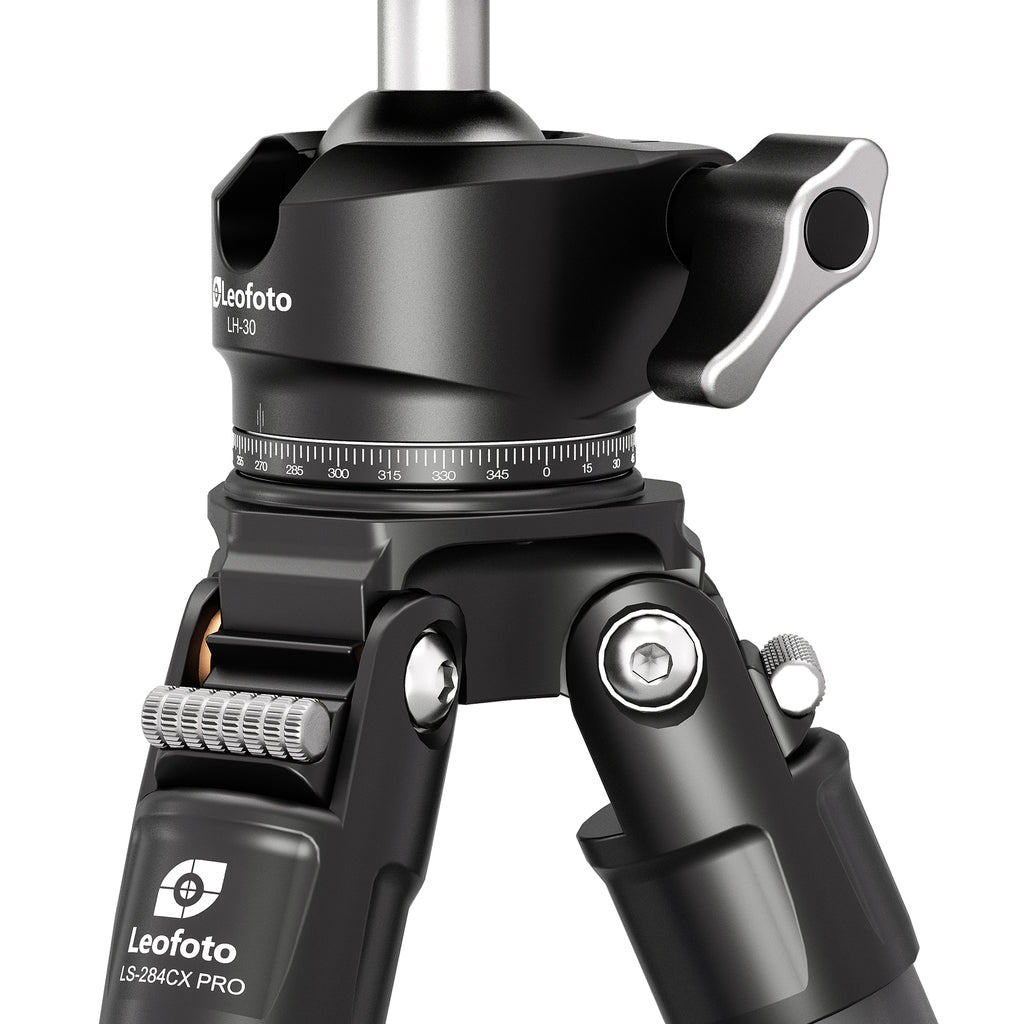

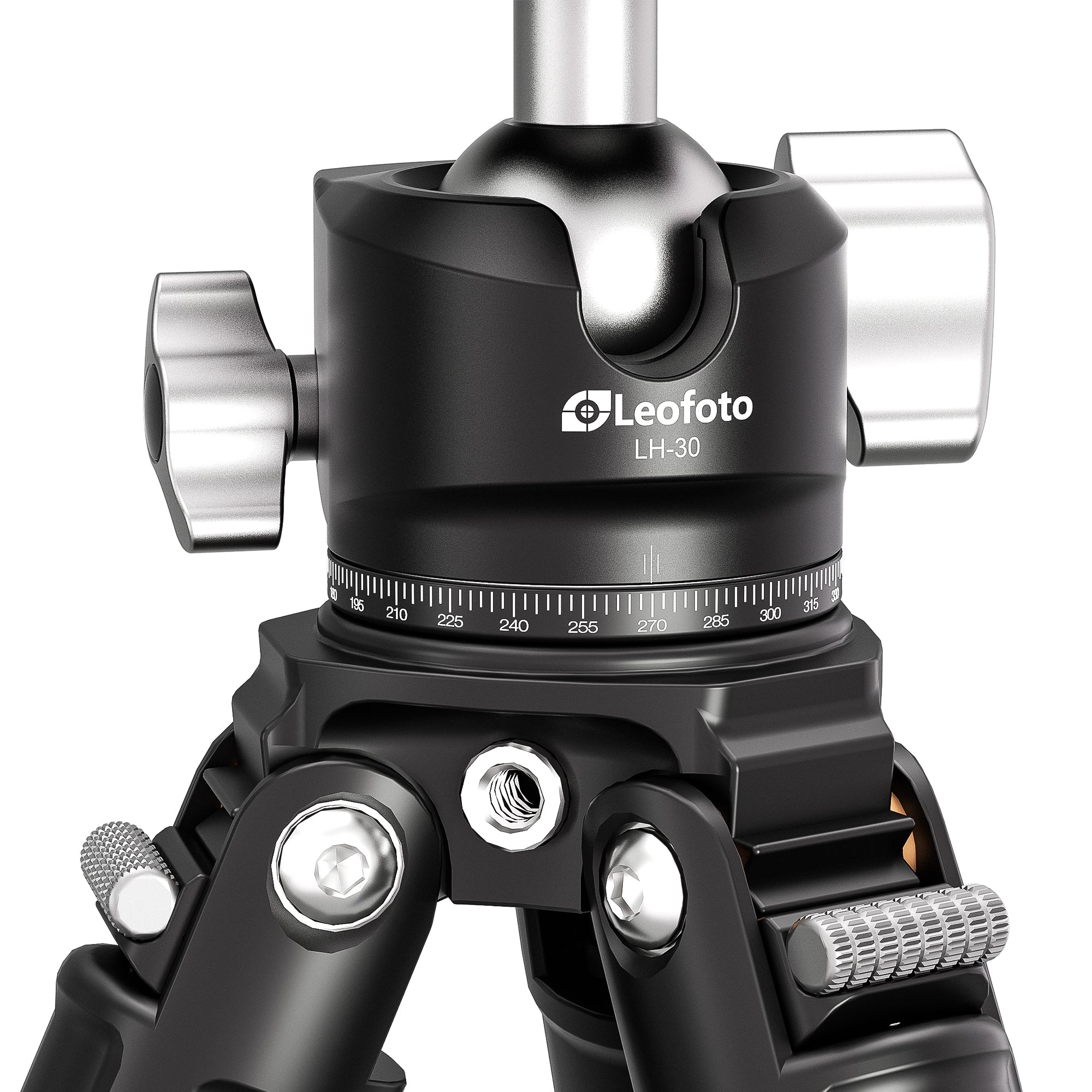

The Leofoto LH-30LR Ball Head is a support solution for general photography, providing fast and accurate control and solid support for your camera or lens. Aiming and horizon leveling can be accomplished in a single motion, and rigid lockup takes just a quick twist of one control. The smaller profile and lack of protruding handles make it easy to carry and pack. These no-nonsense heads offer robust capacity with minimal weight and simple design. They are ideal for ground-level macro work, lightweight backpacking, travel, and tabletop use. The head features a single ball locking knob, while the panning base has a separate lock and is laser-engraved in 2.5-degree increments from 0–360° for precise repeatability. The lever-release clamp allows quick attachment and detachment, unlike a knob clamp, which prioritizes maximum clamping force.
LS-284CXPRO + LH-30LR Specifications:
- Max. Height: 1370 mm / 53.94"
- Min. Height: 165 mm / 6.50"
- Folded Length: 560 mm / 22.05"
- Leg Sections: 4
- Max Load: 10 kg / 22.05 lb
- Weight: 1.51 kg / 3.33 lb
- Tube Sizes: 28 / 25 / 22 / 19 mm
LH-30LR Ball Head Specifications:
- Ball Diameter: 30 mm / 1.18"
- Panning Base Diameter: 47 mm / 1.85"
- Height: 74 mm / 2.91"
- Mounting Hole: UNC 3/8"-16
- Max Load: 15 kg / 33.07 lb
- Weight: 345 g / 0.76 lb
