Description
New Release

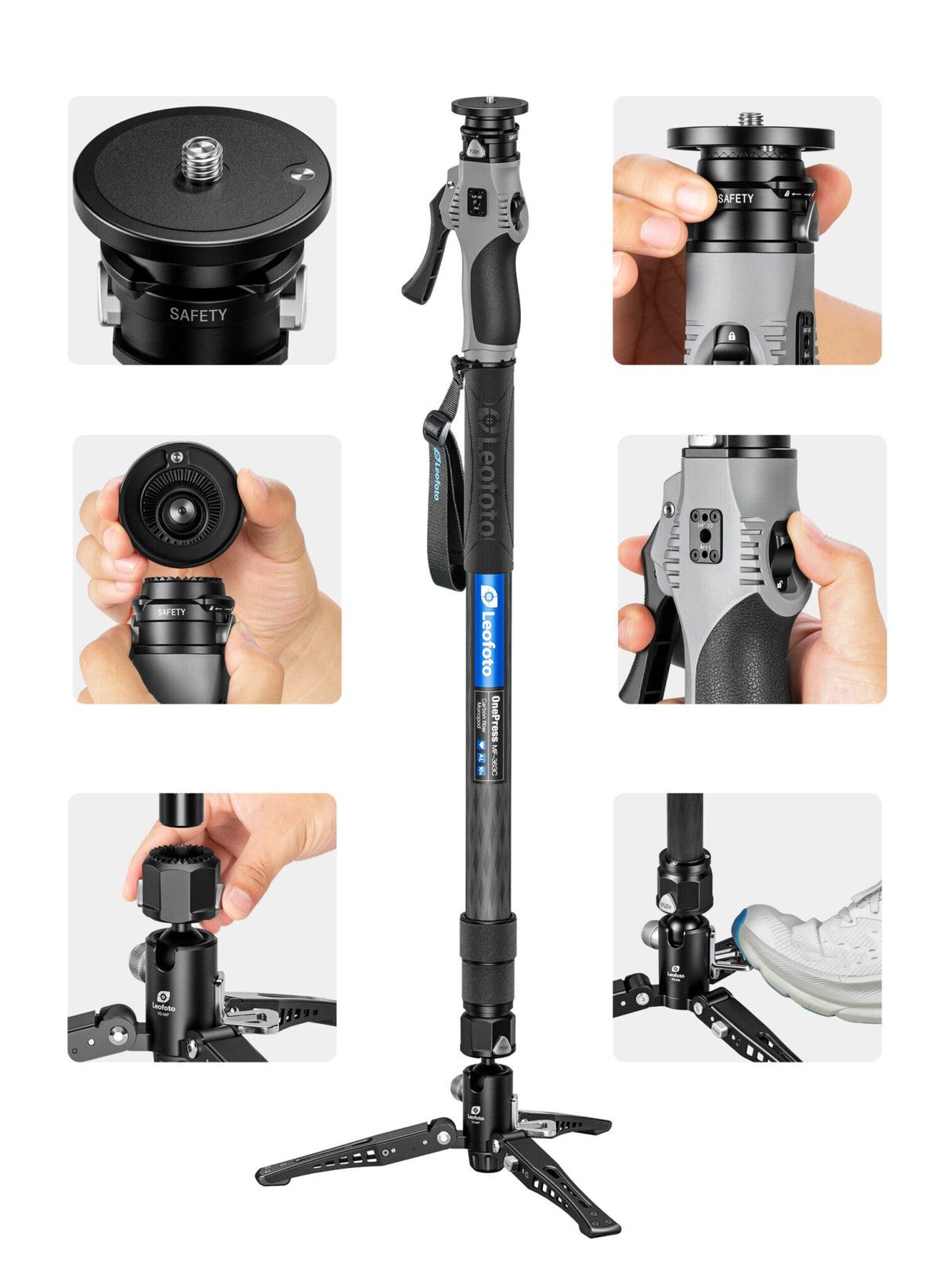

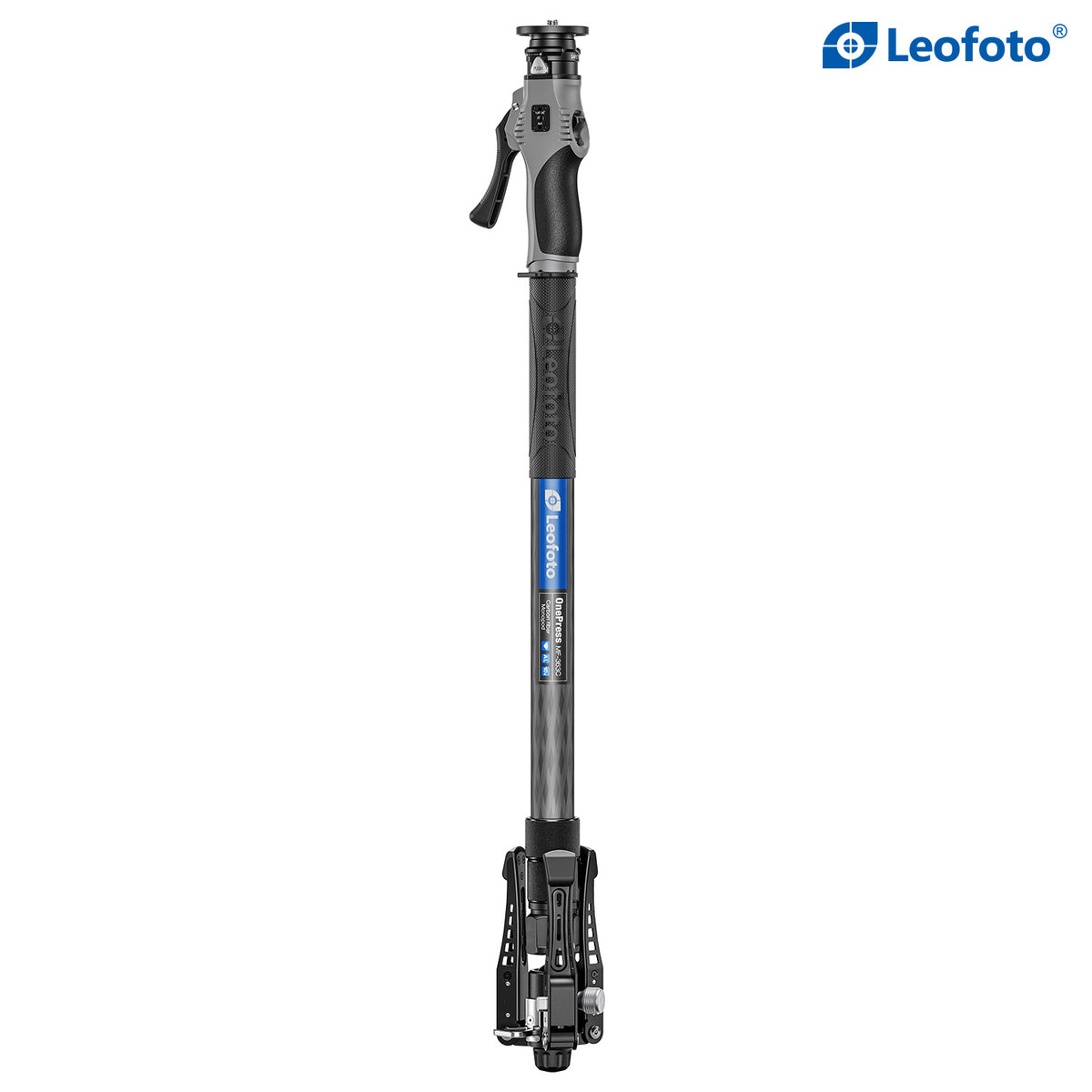

MF-363C+VD-04P One-Click Carbon Fiber Monopod with Foot Pedal
Designed for fast operation and versatile camera support, the MF-363C+VD-04P combines one-click height adjustment, a quick-release system, and a foot-pedal base for flexible positioning and efficient shooting.
Ideal for sports, wildlife, event photography, and video production, this monopod offers convenient height adjustment, flexible shooting angles, and multiple mounting options for compatible camera equipment.
Key Features

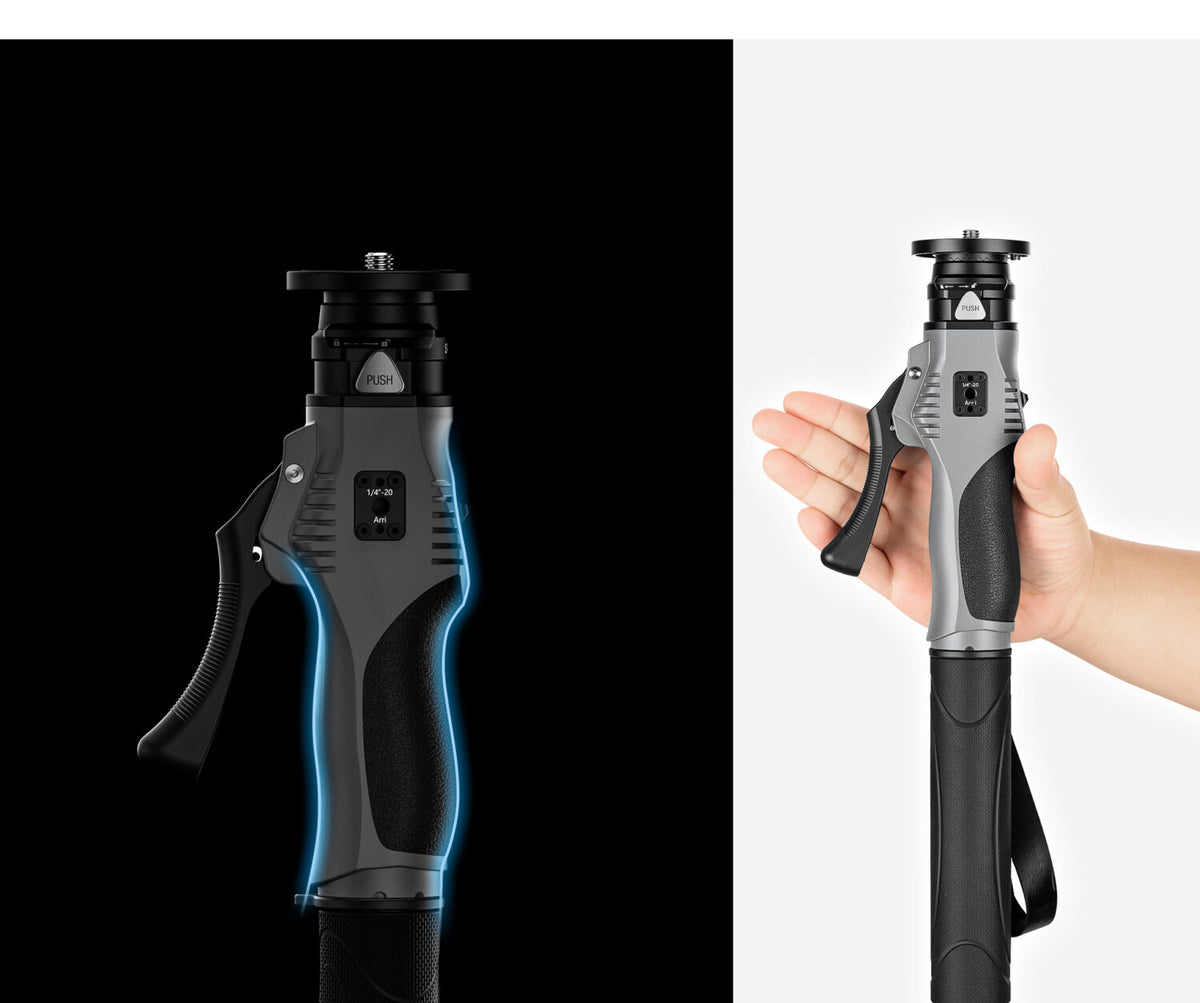

One-Click Height Adjustment
Adjust the monopod's height quickly and easily using the integrated release handle. Press and hold to unlock the leg sections, raise or lower the monopod to your desired height, and release the handle to automatically lock it in place.
Foot-Pedal Locking System
Use the foot pedal to release the head's upright locking position for flexible tilt movement. Step on the pedal again to return the monopod to its upright, locked position.

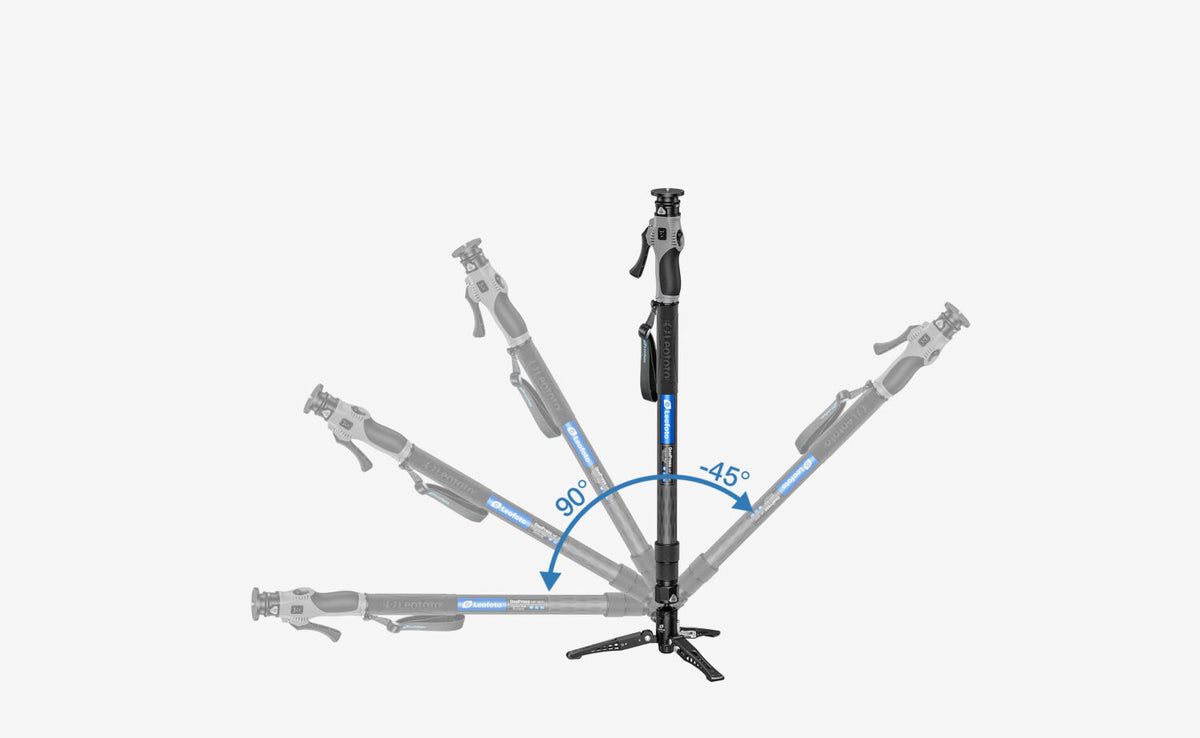

360° Horizontal Panning & Adjustable Tilt
Enjoy 360° horizontal panning and a tilt range of +90° to −45°, providing flexibility for tracking moving subjects and capturing different shooting angles.
Quick-Release System
Quick-release mechanisms at both ends allow convenient removal and reattachment of compatible components. The adapter plate can also be mounted directly to the tripod base for low-angle shooting configurations.

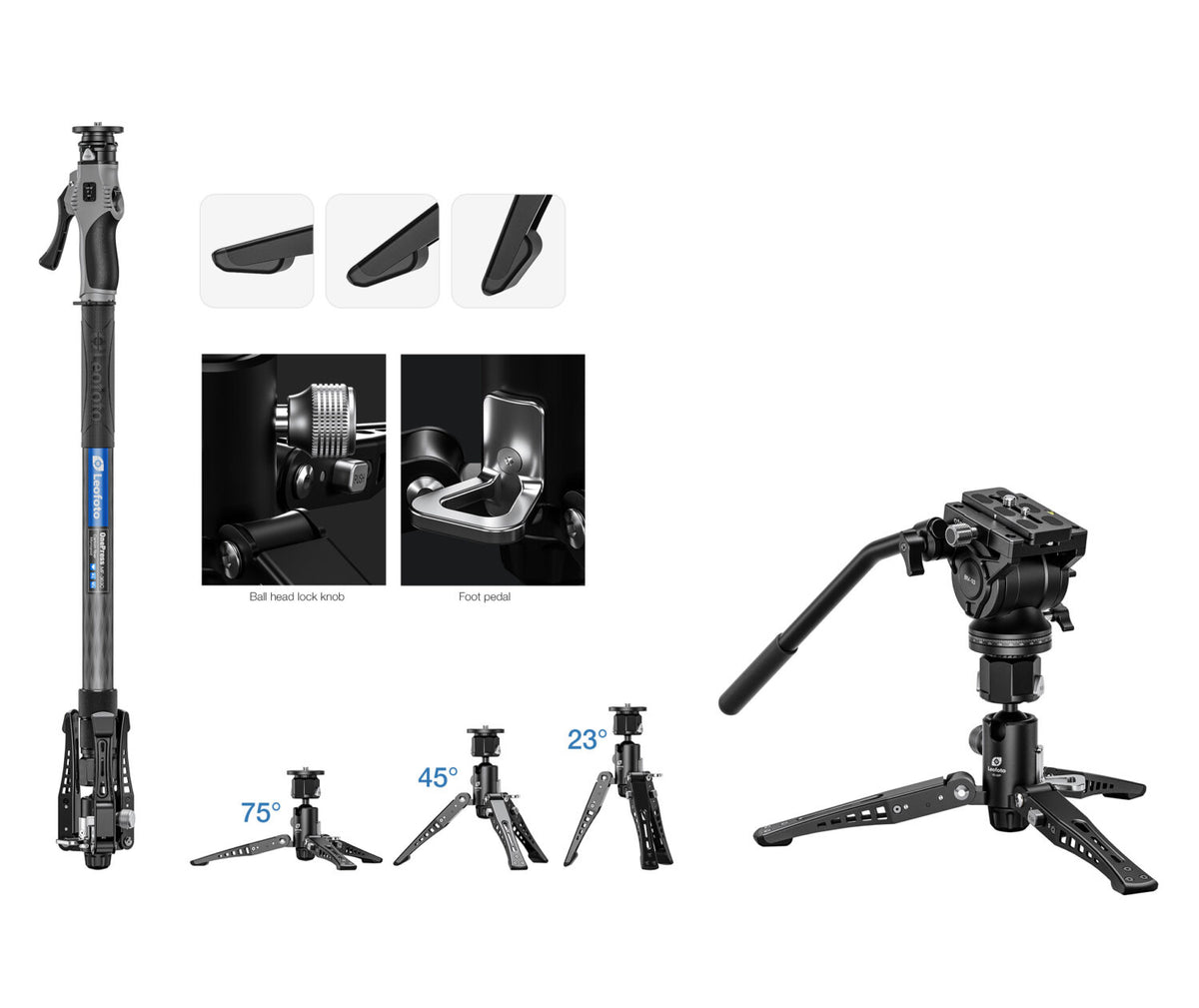

Adjustable Tripod Base
The three-leg base features three adjustable support angles to accommodate different shooting situations. Fold or extend the legs as needed for flexible positioning and compact storage.
Integrated Safety Locks
The grip safety lock helps prevent accidental height adjustment, while the rotary quick-release safety lock helps prevent unintended release of mounted equipment.

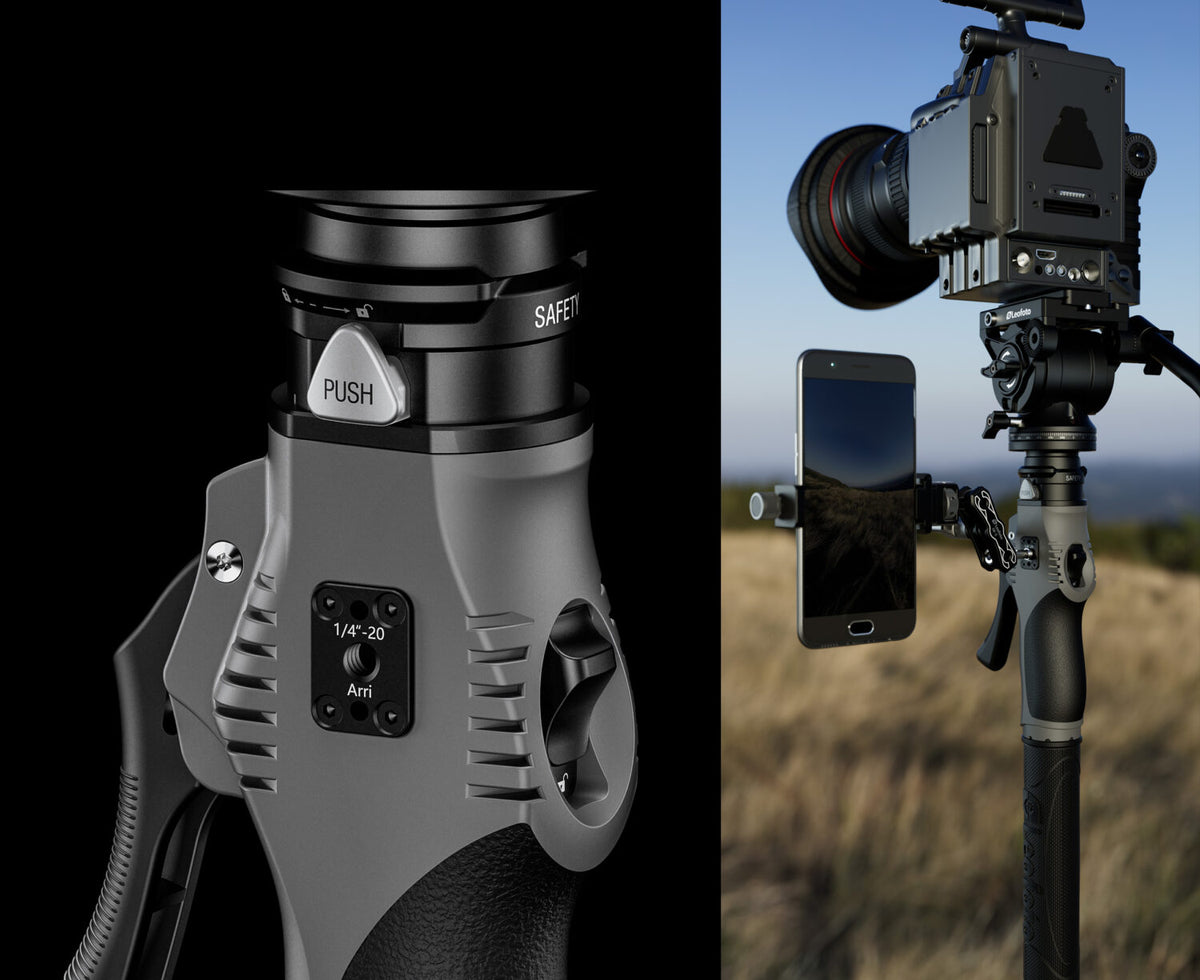

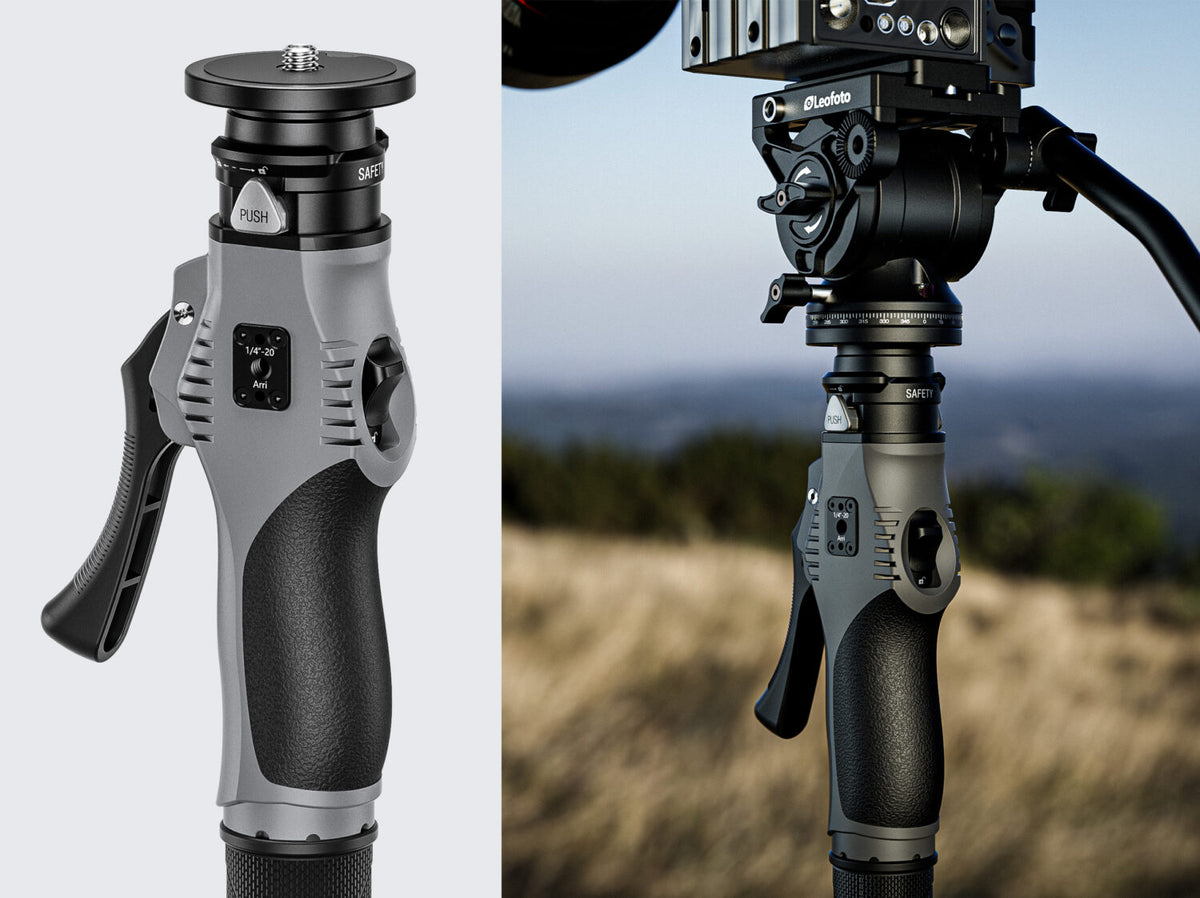

1/4"-20 Threaded Hole & ARRI Locating Pin
The side of the handle features a 1/4"-20 threaded hole and ARRI locating pin for mounting compatible accessories, including magic arms, monitor mounts, and other camera rigging equipment.
Flexible Mounting Screw
Switch between 1/4"-20 and 3/8"-16 mounting threads to accommodate compatible cameras and accessories.
Anti-Rotation Design
The geared anti-rotation interface helps prevent unwanted rotation between compatible mounted components.
Removable Tripod Base
Remove the tripod base and transfer the foot pad to the bottom of the monopod leg to use the monopod without the base.
Specifications
- Maximum Height: 1490 mm (58.66 in)
- Folded Length: 86 mm (3.39 in)
- Leg Sections: 3
- Weight: 1.7 kg (3.75 lb)
- Maximum Load Capacity: 15 kg (33.07 lb)
- Leg Tube Diameters: 36 / 32 / 28 mm
- Mounting Screw: Switchable 1/4"-20 / 3/8"-16
Ideal For
- Sports and action photography
- Wildlife and outdoor photography
- Professional video production
- Event and documentary filming
- Camera rigs and compatible accessories
- Flexible and low-angle shooting setups
Safety Information
Always engage the appropriate safety locks before use and keep the quick-release safety lock in the locked position during operation. Ensure all locking mechanisms are securely engaged before mounting equipment.
Do not twist the leg lock or apply excessive downward force when the monopod is locked. Always operate within the specified maximum load capacity.
