Description

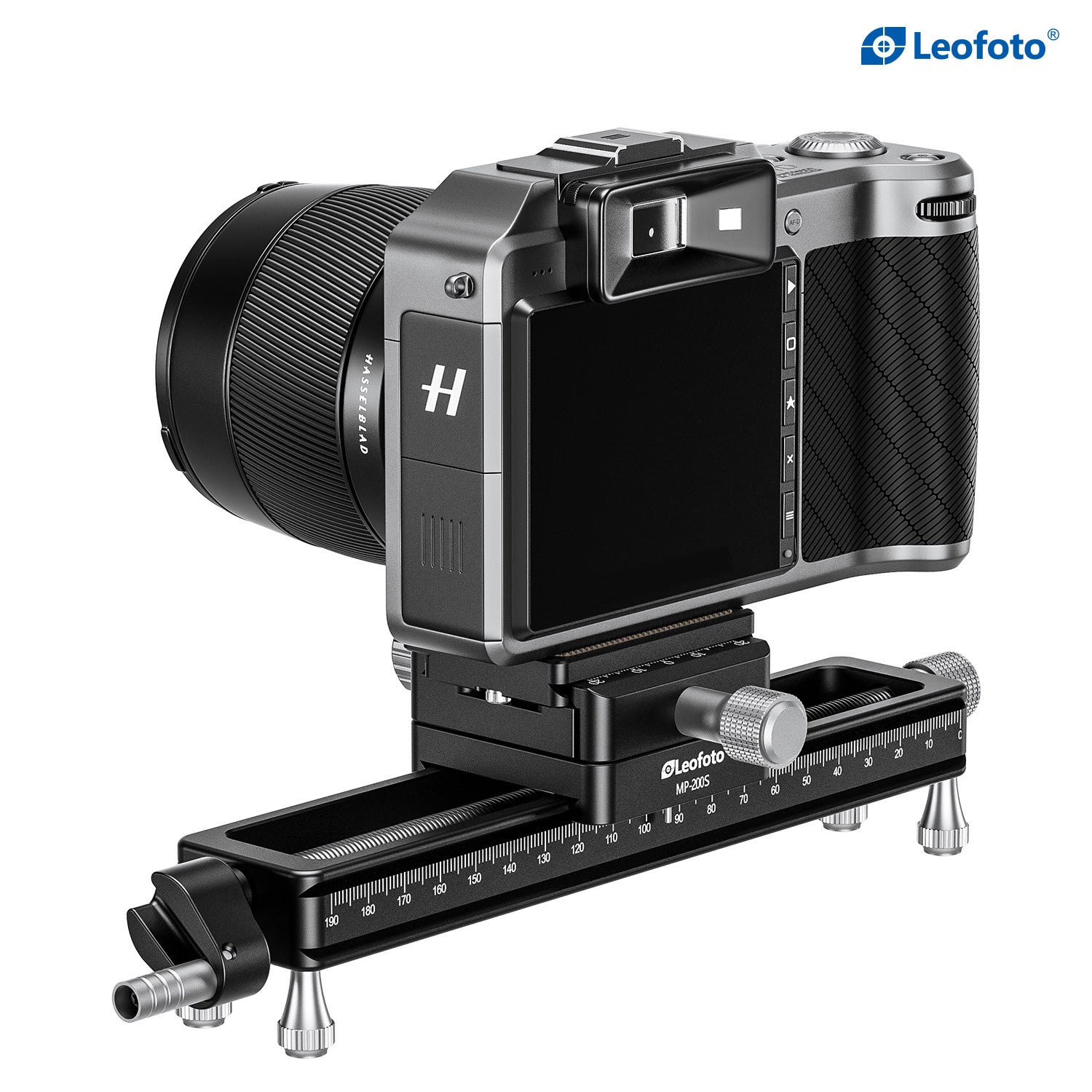

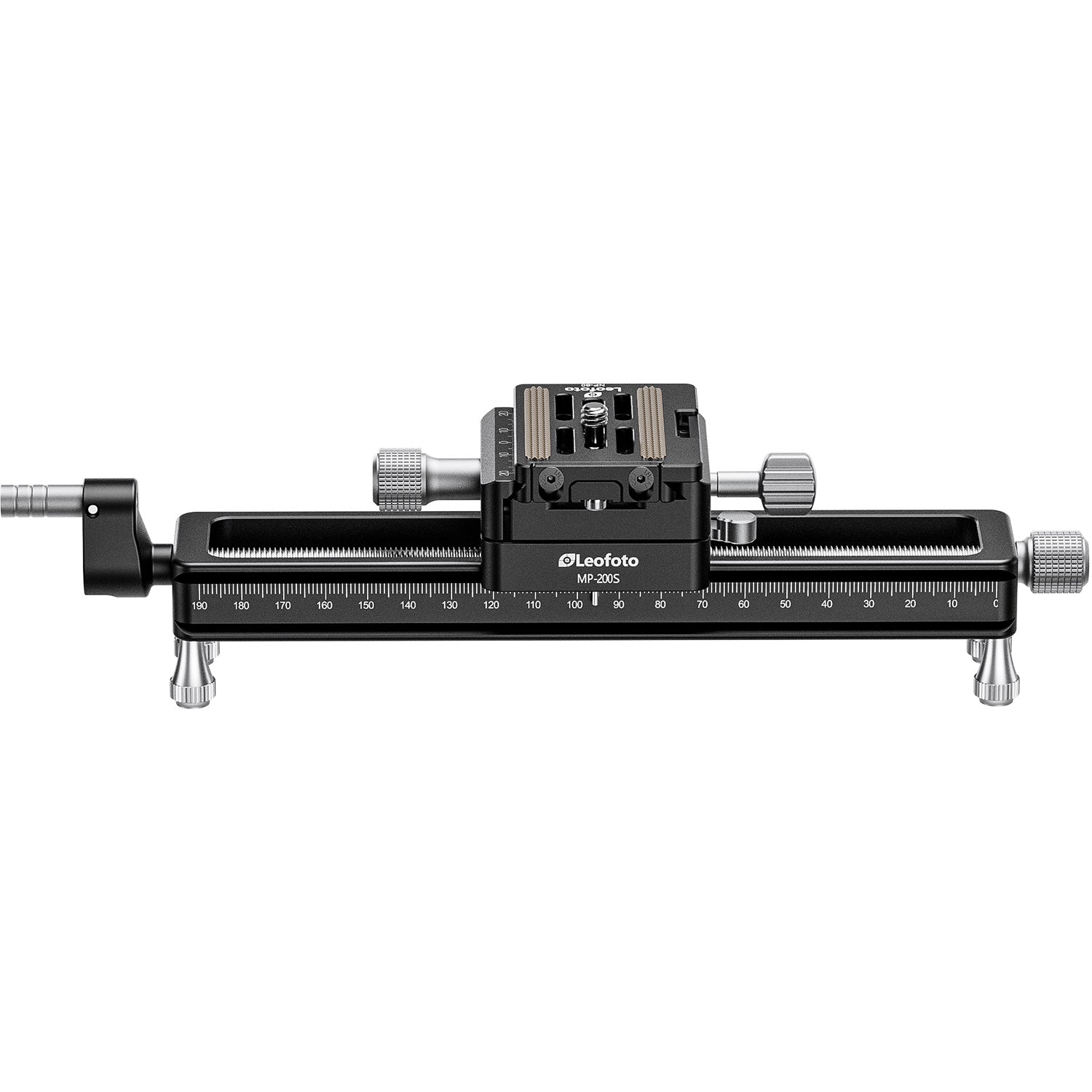

The MP-200S Macro Focusing Rail is a precision linear motion lead screw focusing stage designed for macro photography, focus stacking, and close-up imaging applications. Featuring a smooth and accurate drive mechanism with a rotating Arca-type quick release system, the rail allows precise fore-and-aft camera positioning for highly controlled composition and focus adjustment.
The rail offers a 200mm / 7.87" travel distance within a compact 240mm / 9.45" overall length, providing extended adjustment range while maintaining portability and stability. Each full rotation of the crank delivers 1.25mm / 0.049" of movement for fine positioning accuracy. The fold-flat crank handle allows comfortable operation and convenient storage.

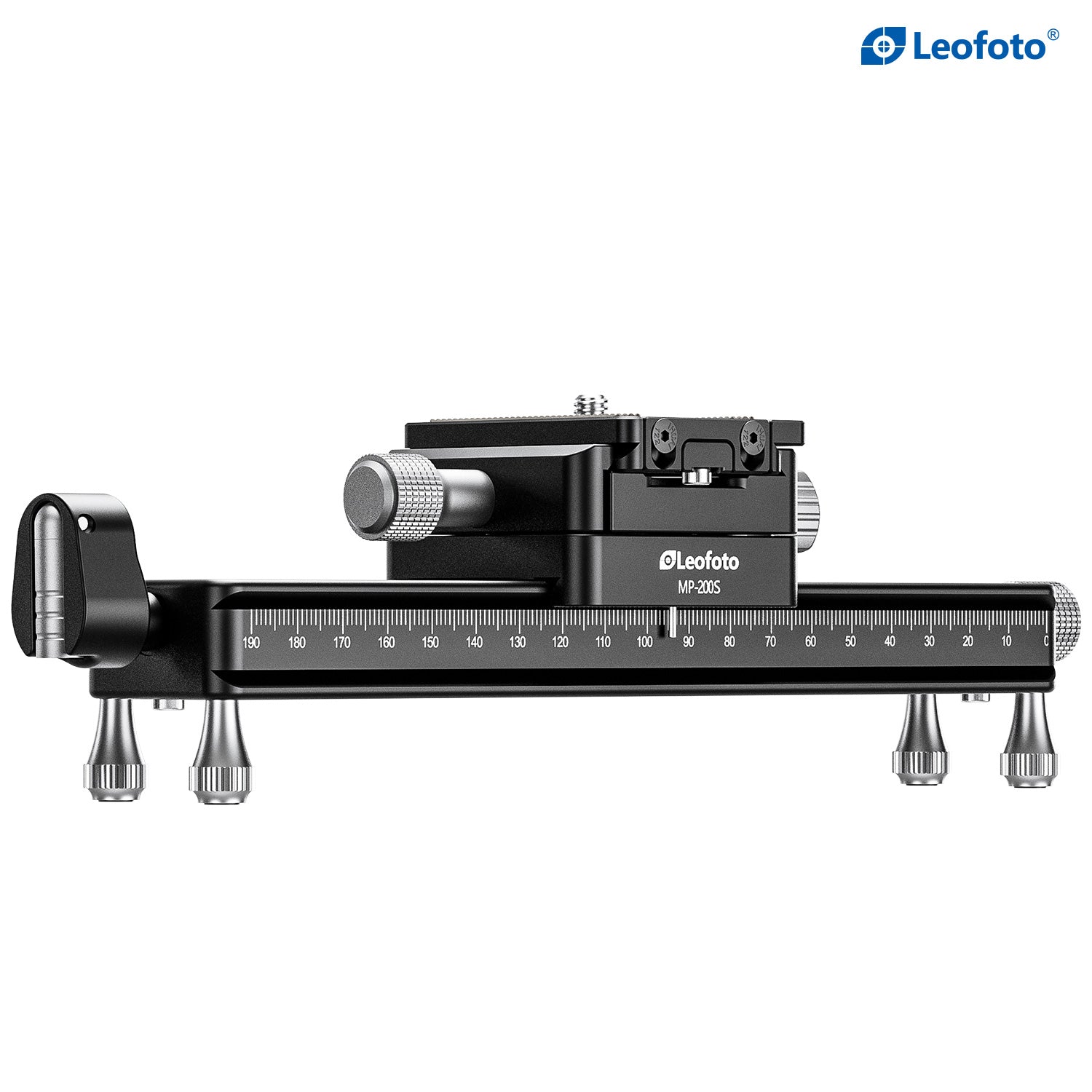

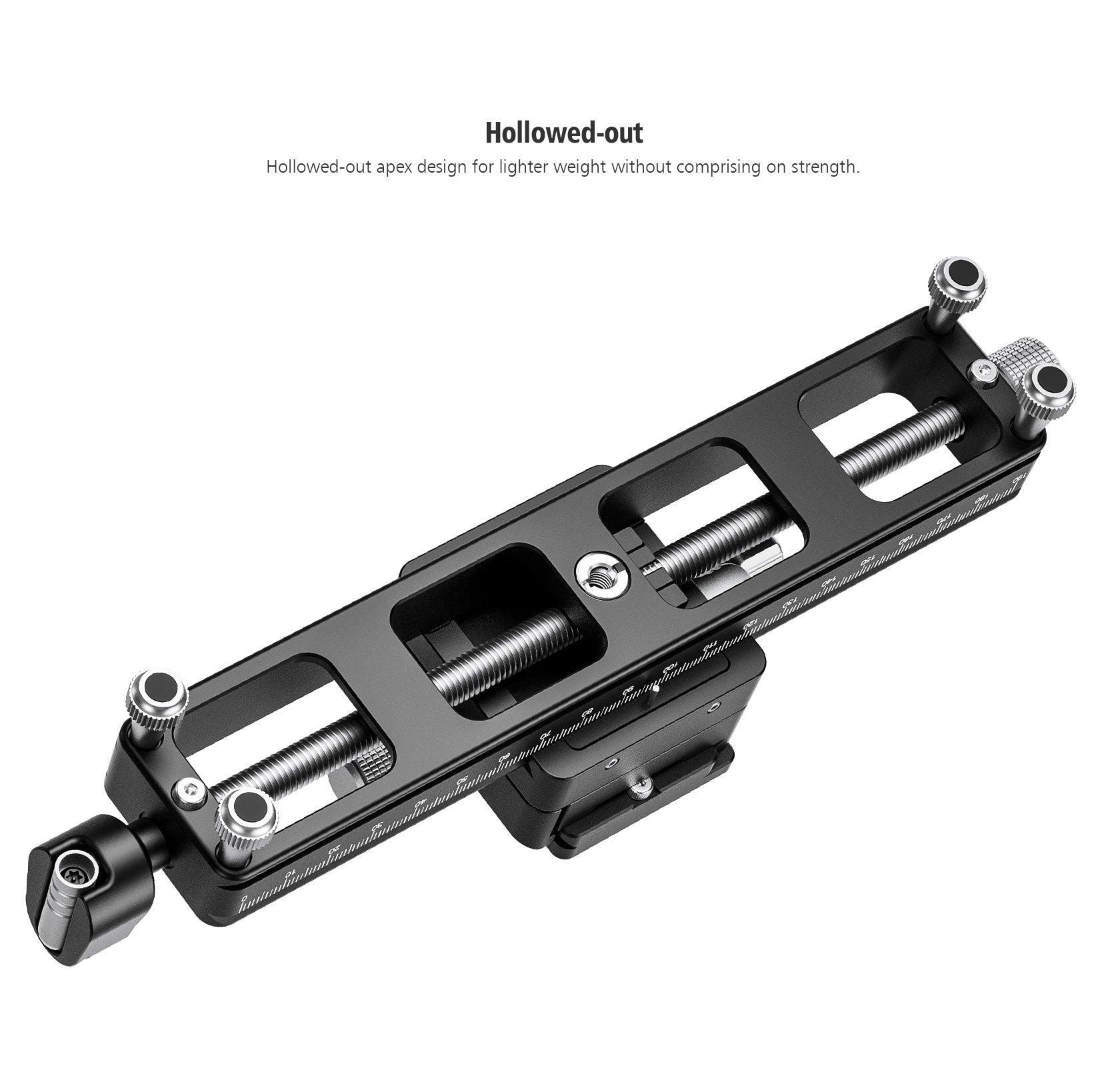

Constructed from lightweight CNC-machined aluminum alloy, the MP-200S features a hollowed-out design that reduces weight without compromising rigidity, supporting loads up to 8kg / 17.6 lb. Numbered scales along the rail enable repeatable and precise adjustments during macro and studio workflows.

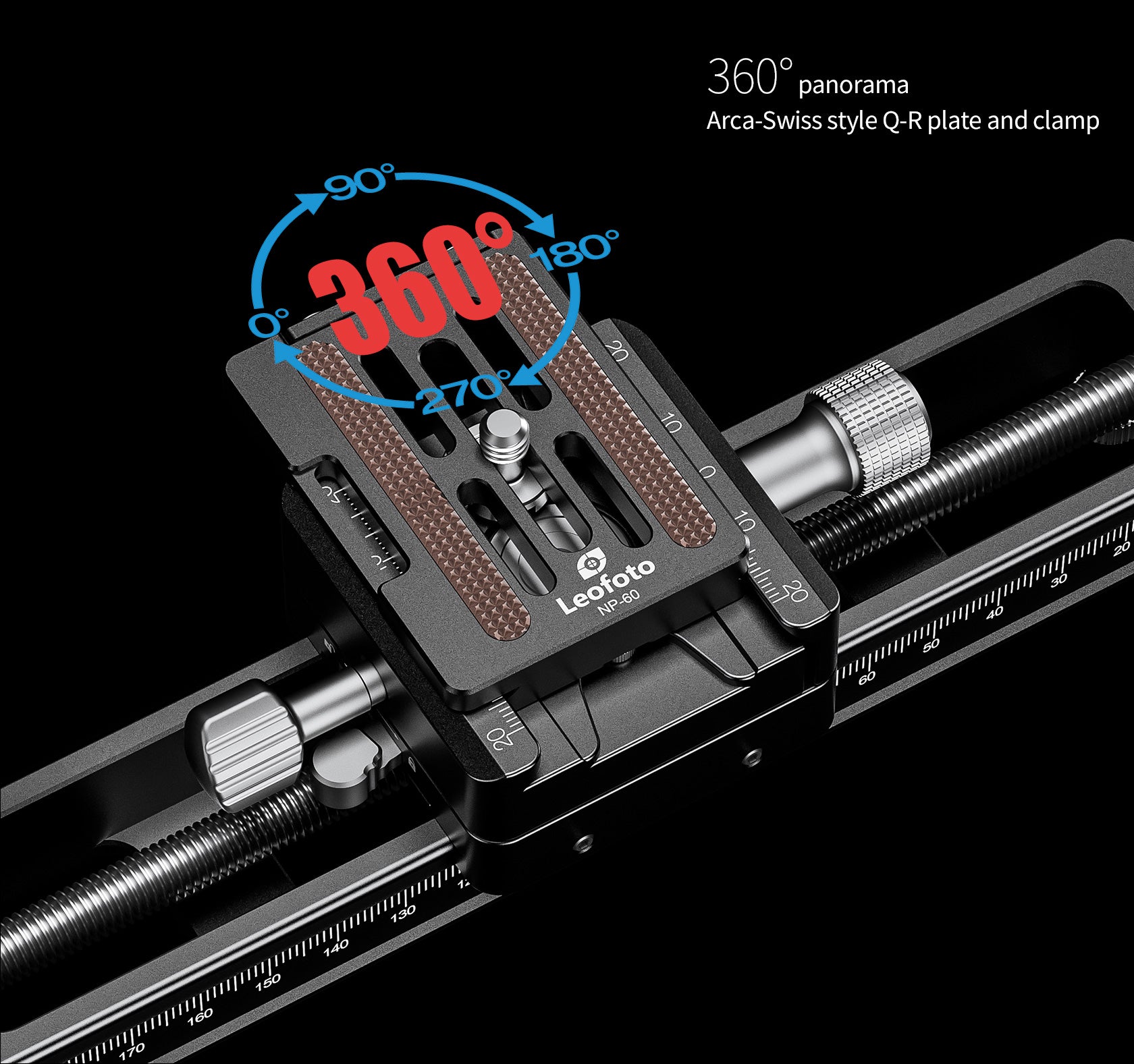

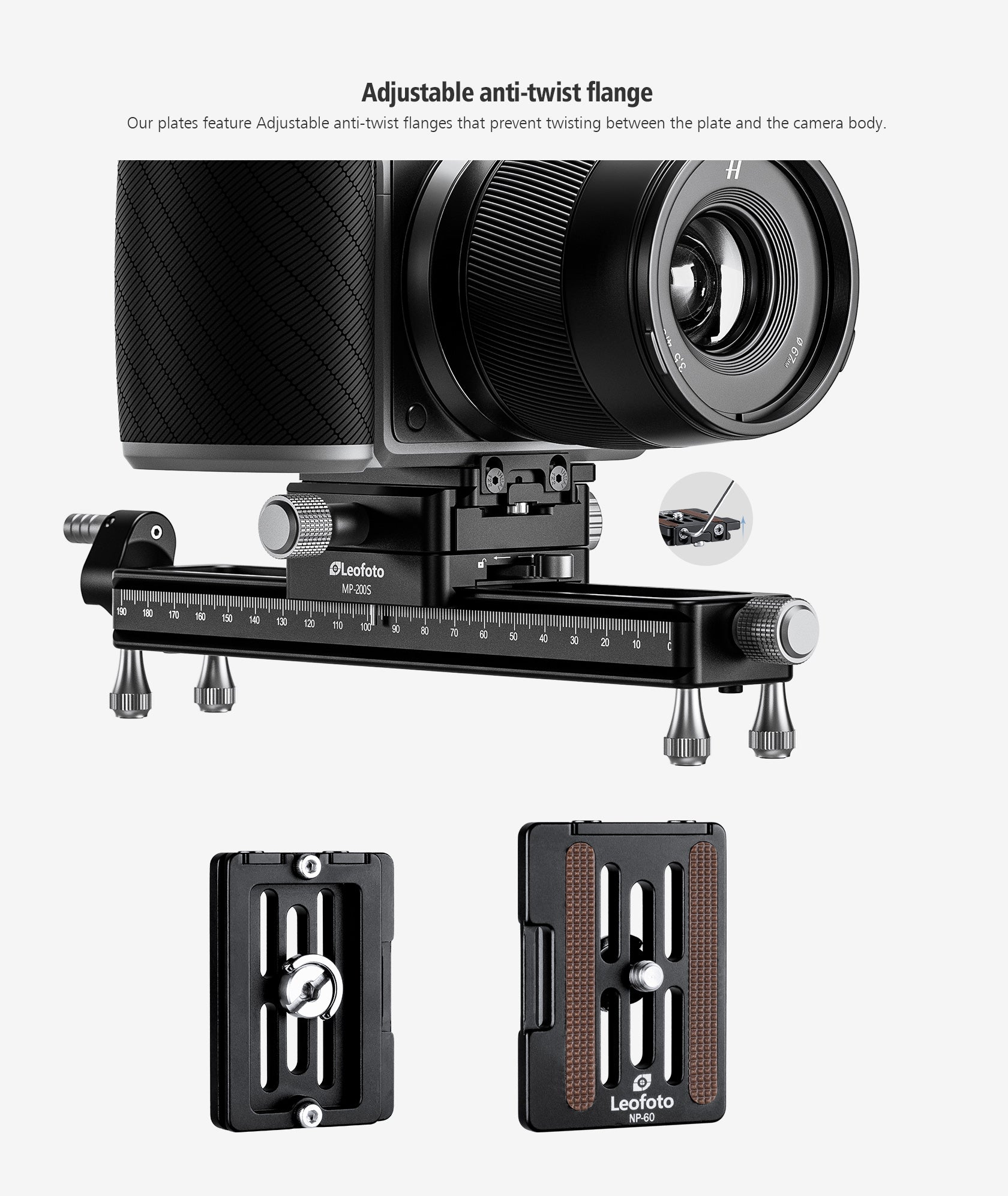

The integrated rotating Arca-type quick release platform locks securely into four positions at 90° increments, allowing fast orientation changes. The included NP-60 quick release plate features traction pads and an adjustable anti-twist flange to help prevent movement between the camera body and plate during operation.

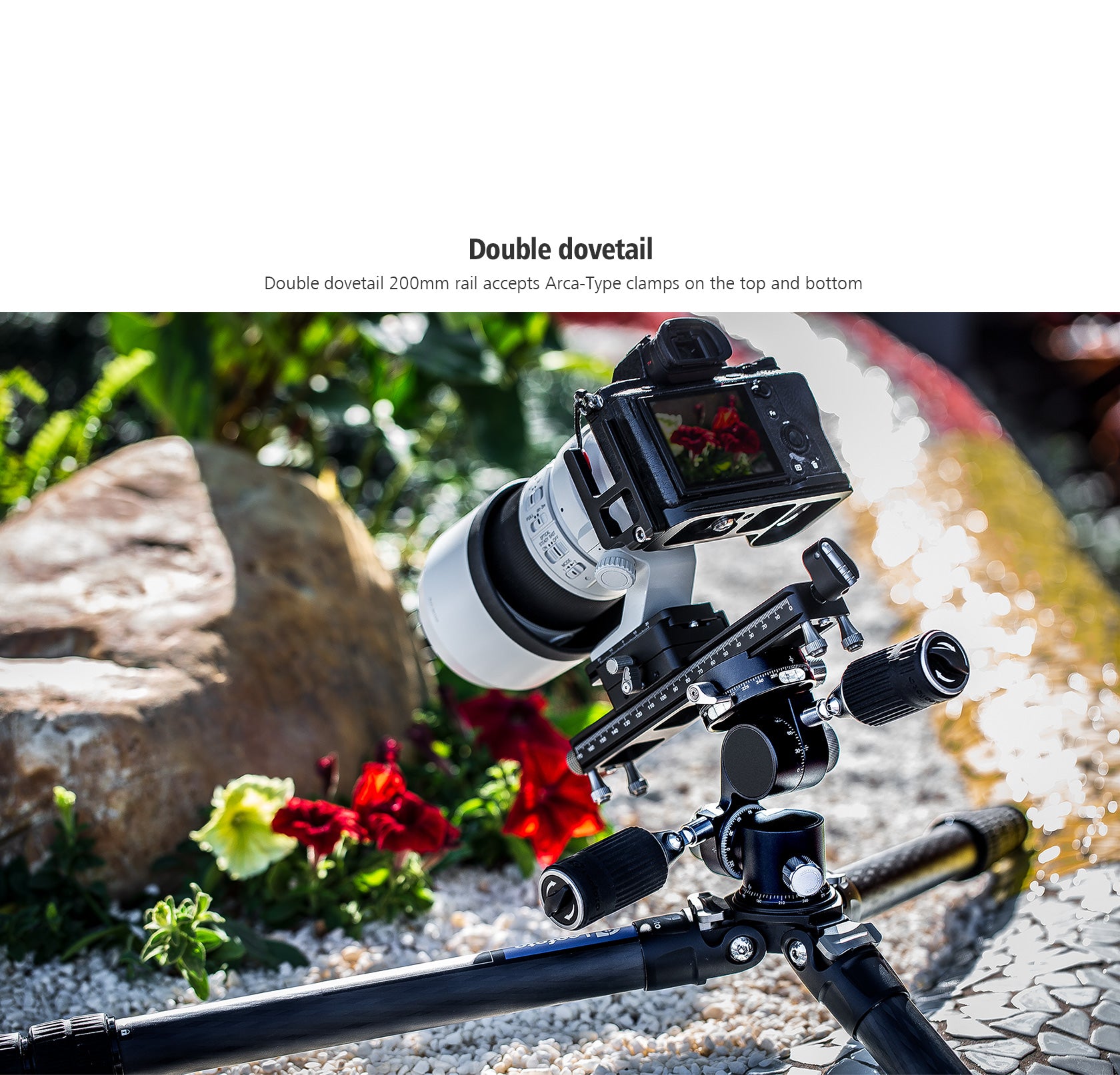

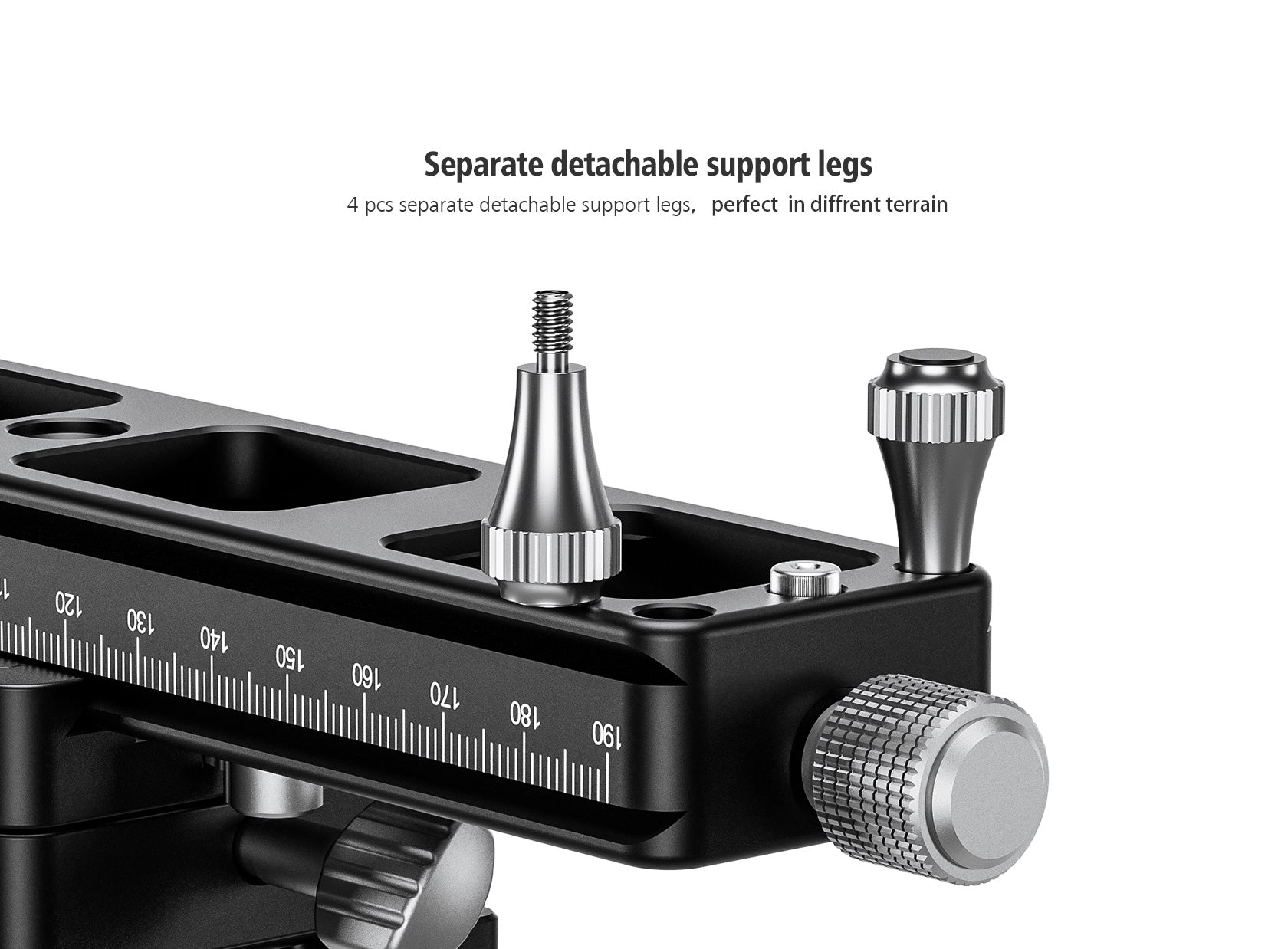

The base of the rail incorporates an Arca-type dovetail for direct compatibility with Arca-standard tripod heads, clamps, and support systems. Four detachable rubber-tipped support legs provide additional stability for tabletop shooting and uneven surfaces.
Key Features
- Precision lead screw focusing rail for macro photography
- Extended 200mm travel distance for accurate positioning
- Rotating Arca-type quick release platform
- Four-position 90° rotational locking system
- Hollowed-out lightweight aluminum construction
- Fold-flat crank handle for compact storage
- Detachable rubber-tipped support legs
- Arca-type compatible dovetail base
- Numbered measurement scales for repeatable adjustments
- NP-60 quick release plate with anti-twist flange
Specifications
- Overall Length: 240mm / 9.45"
- Rail Travel Distance: 200mm / 7.87"
- Weight: 470g / 1.04 lb
- Load Capacity: 8 kg / 17.6 lb
- Travel per Crank Revolution: 1.25mm / 0.049"
